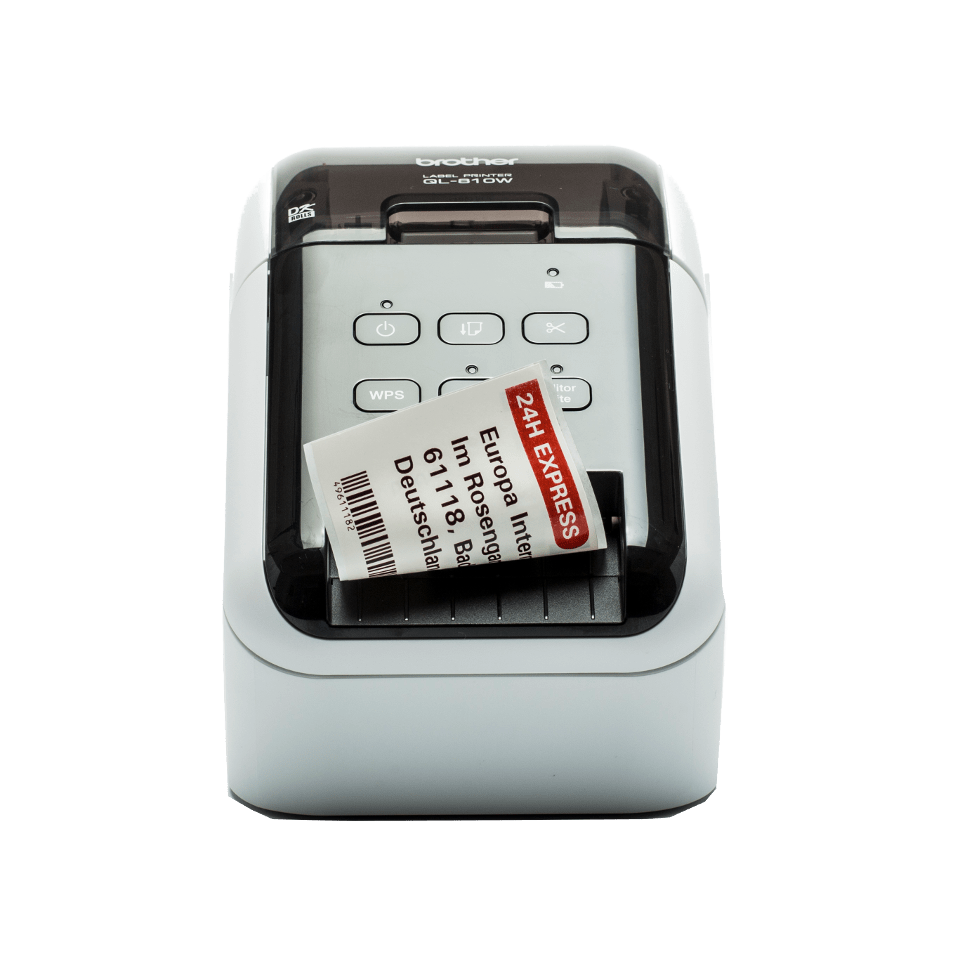

QL-810Wc printing in black and red

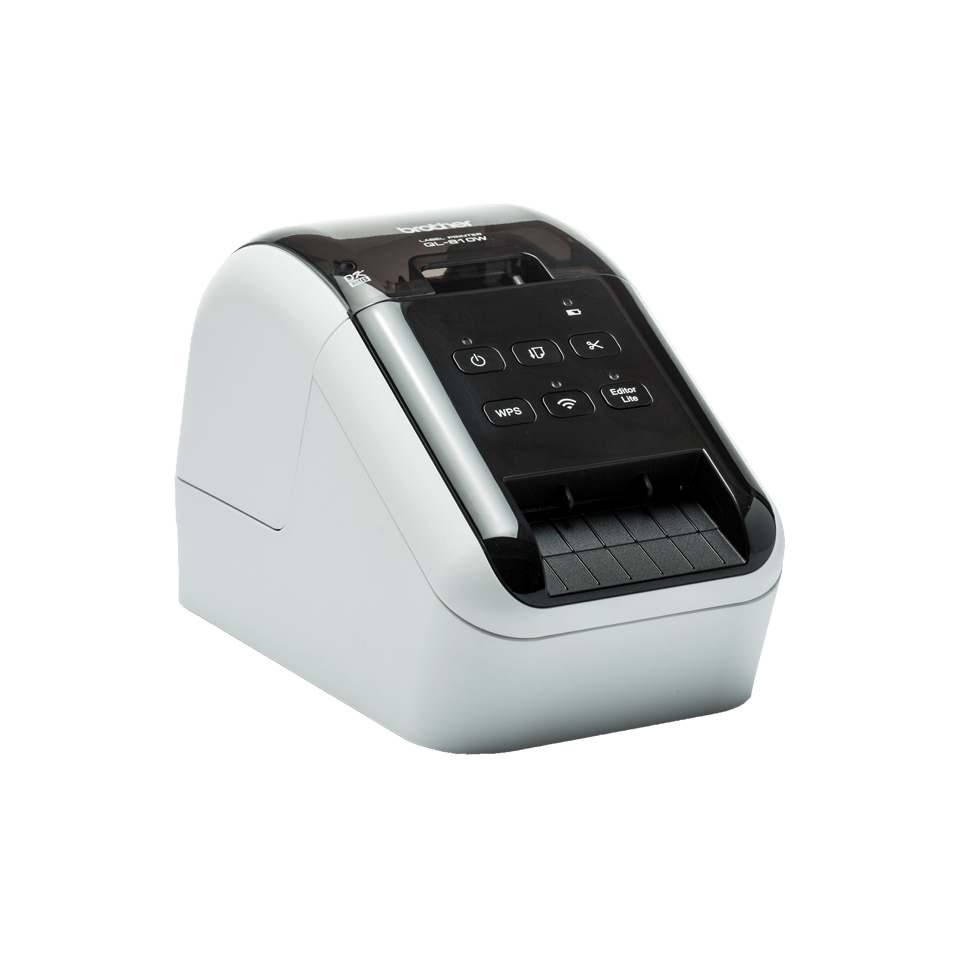

QL810W 3/4 left view
QL810W 3/4 right view

QL-810Wc wireless label printer

Label printer with USB, Wi-Fi and AirPrint. Prints both black and red text.

Product Details

  • USB and Wi-Fi connectivity with AirPrint support

  • Print labels up to 62mm wide from PC, Mac, smartphone or tablet

  • Built-in label editing software doesn't need installing. Simply click to run

  • Print in black and red without needing ink or toner

  • Integrated cutter to create your own length labels

  • Optional rechargeable Li-ion battery base for mobile labelling applications

QL-810Wc printing in black and red

Product Overview

This high-speed label printer connects to your PC, Mac, smartphone or tablet using USB or Wi-Fi. The built-in P-touch Editor Lite software is so easy to use - simply connect the printer to your computer, click the icon to launch the software and design and print your labels.

Thanks to its advanced print mechanism and special label roll, you can also print labels that can contain both black and red colours without the need for ink or toner.

And when you discover you can print custom sized labels up to one metre in length using the integrated cutter and continuous label rolls, it's easy to understand why the QL-810Wc is the ideal choice for offices, workgroups, mail rooms and receptions.

Specifications

General

Machine Type PC Connectable, Desktop
Database upload from PC Yes
Housing colour Glossy black and white
Image upload from PC Yes
Memory Locations 255
Technology Direct thermal
Memory Capacity 6MB

Connectivity

Airprint Yes
WiFi Direct Yes
USB interface USB 2.0 Full Speed
Wireless network interface IEEE802,11b/g/n (Infrastructure Mode)

General Supplies

Rolls DK Die-cut Labels, DK Continuous Length Tape

Dimensions and weights

Dimensions 125mm (W) x 234mm (D) x 145mm (H)
Weight 1.12

In the box

In the box User Guide, Warranty Card, Label Printer, USB Cable, Quick Setup Guide, AC power cord, Standard address die-cut labels (100 labels, 29mm x 90mm), 62mm 2-colour print continuous label roll (5m)

Operating systems & software

Windows Server 2012, Server 2012R2, Server 2016, Server 2019, Windows 10, Windows 8.1, Windows 11, Server 2022
Supported Operating Systems For the full list of compatible operating systems visit support.brother.com

Printing

Bitmap Fonts Brougham, Brussels, Helsinki, Letter Gothic Bold, San Diego
Black And Red Printing Capability (25) Yes
One Dimensional Barcode Symbologies CODE39, CODE128, UPC-A, UPC-E, EAN8, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), EAN13(JAN13), GS1 DataBar(RSS)(GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked)
Printing Maximum Label Width 62mm
Printing Maximum Print Width 60.96mm
Printing Outline Vector Fonts Brussels, Helsinki, Letter Gothic
Printing Resolution 300 x 300 (standard), 300 x 600 (high resolution mode)
Standard Print Speed (labels per minute) (24) 110 labels per minute
Standard Print Speed (mm per second) (24) 176mm per second
Two Dimensional Barcode Symbologies QR Code (Model1, Model2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode, CODE93, POSTNET, UPC-E EXTENSION, PDF417

Editor label design

Database File Compatibility CSV, Microsoft Access, Microsoft Excel
Microsoft Office AddIn Excel, Outlook, Word
Screen Capture Yes
Fonts All installed truetype fonts
Frames 126
Software Date And Time Stamp Date and time
Software Label Orientations Horizontal, Vertical
Software Sequential Numbering Yes
Software Text Alignment Centre, Left, Justify, Right
Software Typestyles Bold, Horizontal lines, Invert, Italic, Normal, Shadow, Shadow light, Surround
Software Vertical Print Yes

Solutions

SDK (Software Development Kit) Yes

Caveats

  • [24] Brother standard test environment. Using DK-11201 standard address labels and USB connection
  • [25] Requires DK-22251 continuous roll to print in black and red
