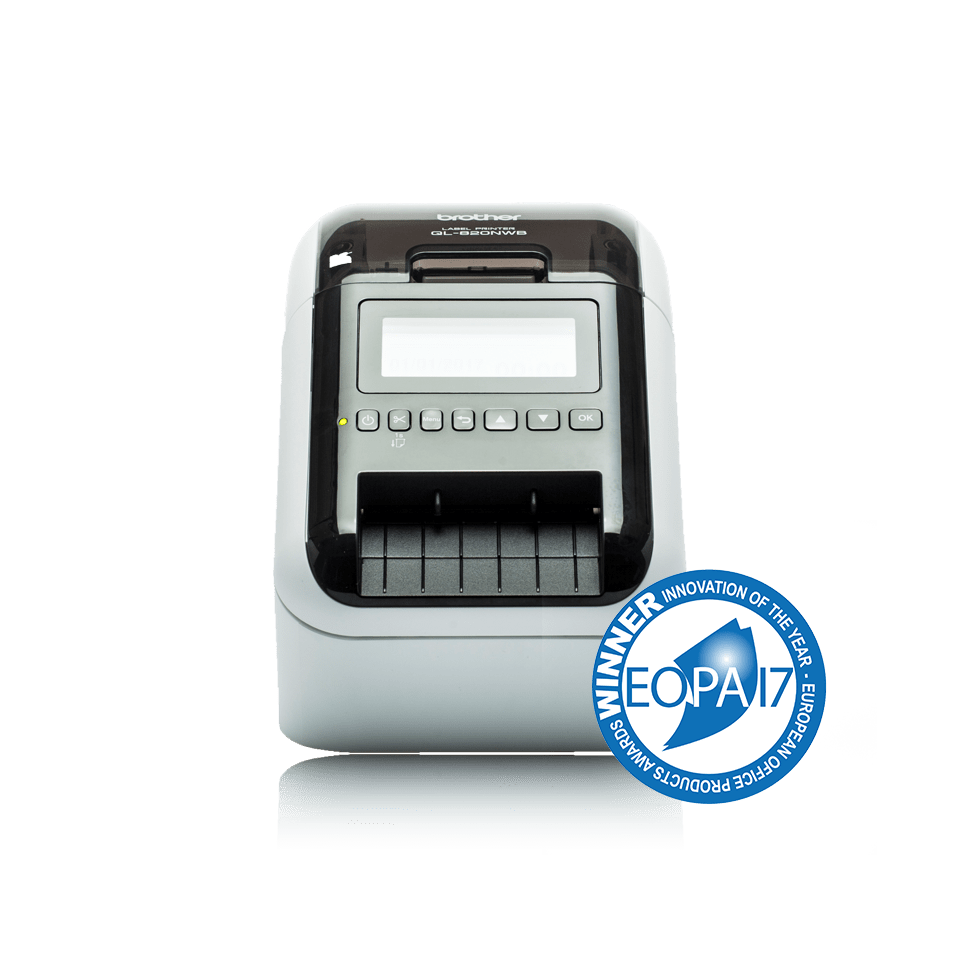

QL820NWB front view with reflection and EOPA 2017 award logo

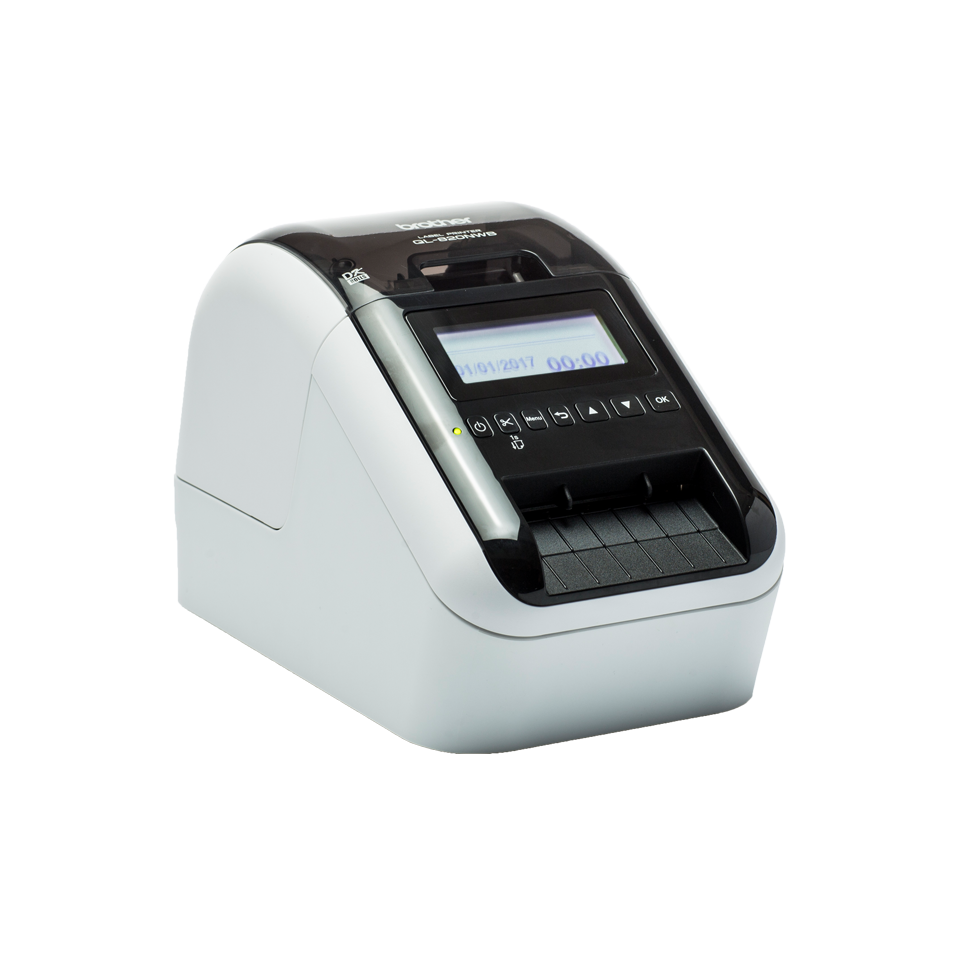

QL820NWBc 3/4 left view
QL820NWB 3/4 right view

QL-820NWBc network label printer

Label printer with a wide range of integrated connectivity options, including Wi-Fi, wired Ethernet, Bluetooth and AirPrint. The large back-lit LCD display enables easy setup and operation.

Product Details

  • USB, Ethernet, Wi-Fi and Bluetooth connectivity with support for MFi and AirPrint

  • Print labels up to 62mm wide from PC, smartphone or tablet. Or print labels stored in memory using the integrated control panel

  • Large backlit LCD display for easy set-up and operation

  • Print in black and red without needing ink or toner

  • Built-in cutter to create your own length labels

  • Optional rechargeable Li-ion battery base for mobile labelling applications

QL820NWB front view with reflection and EOPA 2017 award logo

Product Overview

Print labels from your PC, Mac, smartphone or tablet using USB, Ethernet, Wi-Fi and Bluetooth. Or alternatively use it in standalone mode by selecting and printing labels previously designed and uploaded to the memory, using the integrated backlit LCD display.

When used with special rolls, you can print labels that can contain both black and red print without needing any ink.

And when you can print custom sized labels up to one metre in length using the built-in cutter and continuous rolls, you can see why this is the most advanced label printer available.



Machine Type PC Connectable, Desktop
Database upload from PC Yes
Housing colour Glossy black and white
Image upload from PC Yes
Memory Locations 255
Technology Direct thermal
Memory Capacity 6MB
Template upload from PC Yes


Airprint Yes
Bluetooth Yes (Ver 5.2)
Bluetooth Profiles SPP (Serial Port Profile), OPP (Object Push Profile), HCRP (Hard Copy Cable Replacement Profile)
WiFi Direct Yes
MFi Yes
USB interface USB 2.0 Full Speed
Wired network interface 10/100 BASE-TX
Wireless network interface IEEE802,11b/g/n (Infrastructure Mode)

General Supplies

Rolls DK Die-cut Labels, DK Continuous Length Tape

Dimensions and weights

Dimensions 125mm (W) x 234mm (D) x 145mm (H)
Weight 1.16

In the box

In the box User Guide, Warranty Card, Label Printer, USB Cable, Quick Setup Guide, AC Adaptor, AC power cord, Standard address die-cut labels (100 labels, 29mm x 90mm), 62mm 2-colour print continuous label roll (5m)

Operating systems & software

Windows Server 2012, Server 2012R2, Server 2016, Server 2019, Windows 10, Windows 8.1, Windows 11, Server 2022
Supported Operating Systems For the full list of compatible operating systems visit support.brother.com


Bitmap Fonts Brougham, Brussels, Helsinki, Letter Gothic Bold, San Diego
Black And Red Printing Capability (25) Yes
One Dimensional Barcode Symbologies CODE39, CODE128, UPC-A, UPC-E, EAN8, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), EAN13(JAN13), GS1 DataBar(RSS)(GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked)
Printing Maximum Label Width 62mm
Printing Maximum Print Width 60.96mm
Printing Outline Vector Fonts Brussels, Helsinki, Letter Gothic
Printing Resolution 300 x 300 (standard), 300 x 600 (high resolution mode)
Standard Print Speed (labels per minute) (24) 110 labels per minute
Standard Print Speed (mm per second) (24) 176mm per second
Two Dimensional Barcode Symbologies PDF417(Standard, Truncate, Micro), QR Code (Model1, Model2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode, CODE93, POSTNET, UPC-E EXTENSION

Editor label design

Database File Compatibility Microsoft Access, Microsoft Excel
Microsoft Office AddIn Excel, Outlook, Word
Screen Capture Yes
Fonts All installed truetype fonts
Frames 126
Software Date And Time Stamp Date and time
Software Label Orientations Horizontal, Vertical
Software Sequential Numbering Yes
Software Text Alignment Centre, Left, Justify, Right
Software Typestyles Bold, Horizontal lines, Invert, Italic, Normal, Shadow, Shadow light, Surround
Software Vertical Print Yes


SDK (Software Development Kit) Yes


  • [24] Brother standard test environment. Using DK-11201 standard address labels and USB connection
  • [25] Requires DK-22251 continuous roll to print in black and red
