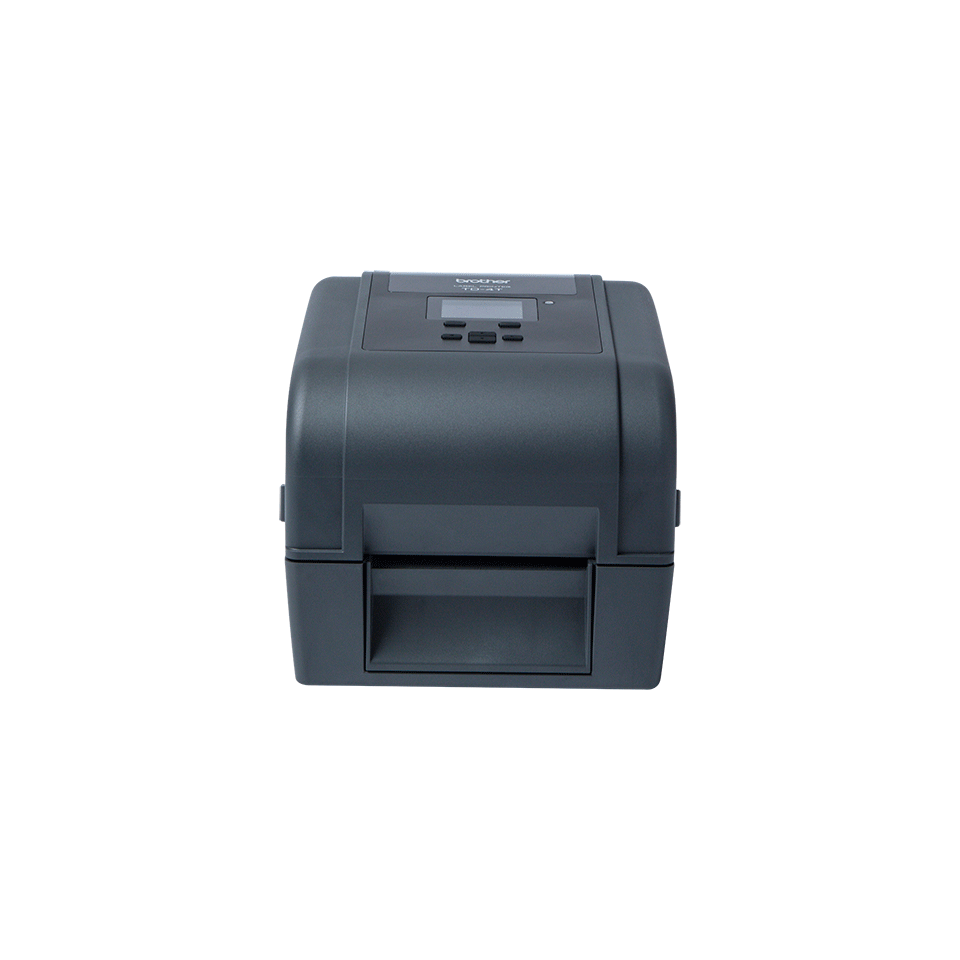

TD4750TNWBR label desktop printer front with no background
TD4750TNWBR label desktop printer left with no background
TD4750TNWBR label desktop printer right with no background
TD4750TNWBR label printer open with label and ribbon inside
TD4750TNWBR label desktop printer top with no background

TD-4750TNWBR Desktop Label Printer

4" desktop printer for high-quality, continuous label printing

Product Details

  • Ease of use with 2.3" colour LCD display
  • Thermal transfer and direct thermal printing technology
  • Range of connectivity options including USB, Network, WiFi and Bluetooth
  • High capacity with 300m ribbon, minimising downtime
  • 300dpi high resolution printing for crisp text and barcodes
  • Fast print speeds up to 6 inches per second
TD4750TNWBR label desktop printer front with no background

Product Overview

The TD-4750TNWBR versatile desktop printer uses high capacity thermal transfer ink ribbons for durable labelling and ultimate productivity. Seamlessly integrate into your existing systems with its industry standard embedded printer commands. This desktop printer also offers RFID capabilities for identification, tracking and security.

Specifications

General

Technology Thermal transfer/Direct thermal
Buttons Power , Feed
Display LCD Display
LED Power, Data, Error
Memory capacity FLASH, 128MB, RAM, 128MB

Connectivity

Bluetooth Yes (Ver 5.0)
Bluetooth Profiles SPP (Serial Port Profile), Bluetooth Classic, GATT (Bluetooth Low Energy)
Serial Yes
USB interface USB 2.0, USB Host
Wired network interface 10/100 Mbps
Wireless network interface 802,11 a/b/g/n

Dimensions and weights

Dimensions 219mm (W) x 284mm (D) x 191mm (H)
Weight 3.0

In the box

In the box Quick Setup Guide (QSG), Printer, AC adaptor, AC Power supply cord, USB Cable

Operating systems & software

Supported Operating Systems Windows (Windows 8.1, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows), Mac OSX (Mac OS X 10.8 or higher), For the full list of compatible operating systems visit support.brother.com, Linux

Printing

Maximum Print Speed 6 ips
One Dimensional Barcode Symbology Code128, Interleaved 2 of 5, Code39, EAN13(JAN13), EAN8(JAN8), UPC-A, UPC-E, UPC/EAN EXTENSION, CODABAR(NW7), MSI, China post, ITF14, Code11, TELEPEN, TELEPEN number, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS, PLESSEY, POSTNET
Two Dimensional Barcode Symbology GS1 Databar Composite, DataMatrix, MaxiCode, Aztec, PDF417, QR Code, Micro PDF417
Maximum Print Lenght 11430mm
Printing Maximum Print Speed 6 ips
Resolution (dpi) 300 x 300dpi
Printing Maximum Roll Core Diameter 38.1mm
Printing Maximum Roll Diameter 127mm
Printing Minimum Label Width 20mm
Printing Minimum Roll Core Diameter 25.4mm
Supported commands FBPL-EZD (EPL2, ZPL2, DPL)

Solutions

SDK (Software Development Kit) Yes

Warranty

Warranty 3 years
New Tab

Software Security Updates Guarantee

Brother devices conform to The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023 and receive guaranteed software security updates until at least five years after the device is last in production.

After the initial support period, Brother shall use all reasonable endeavours to provide software updates for as long as reasonably practicable.

If you already own a Brother device, visit support.brother.com for information specific to your device.


Ultimate productivity

Experience high-performance, thermal desktop printing up to 4" in width for ultimate productivity. The TD-4750TNWBR label, receipt and wristband printer offers fast print speeds of up to 6 inches per/second and minimises downtime with 300 metre ribbons, meaning less ribbon changes.


Connectivity to suit your requirements

With integrated USB, Ethernet and Serial ports as standard, the Brother TD-4750TNWBR will have no problems connecting to your existing equipment and infrastructure.

Additional connectivity includes WiFi and Bluetooth.




Easy to use

The colour LCD ensures ease-of-use and the supported printer command languages and Software Development Kits make integration equally as easy.


High quality thermal transfer printing

This 4" desktop printer offers 300 dpi for crisp, easy-to-read text and barcodes, time after time, to meet the needs of your demanding workflow.


RFID capability

Equipped with the ability to print on RFID labels and tags, the TD-4750TNWBR printer can meet your RFID needs - whether that's security, stock management or tracking your assets.



Customisation with optional accessories

The TD-4750TNWBR offers optional accessories including a label cutter, automatic label peeler and external roll holder to further meet your requirements and increase your efficiency.
