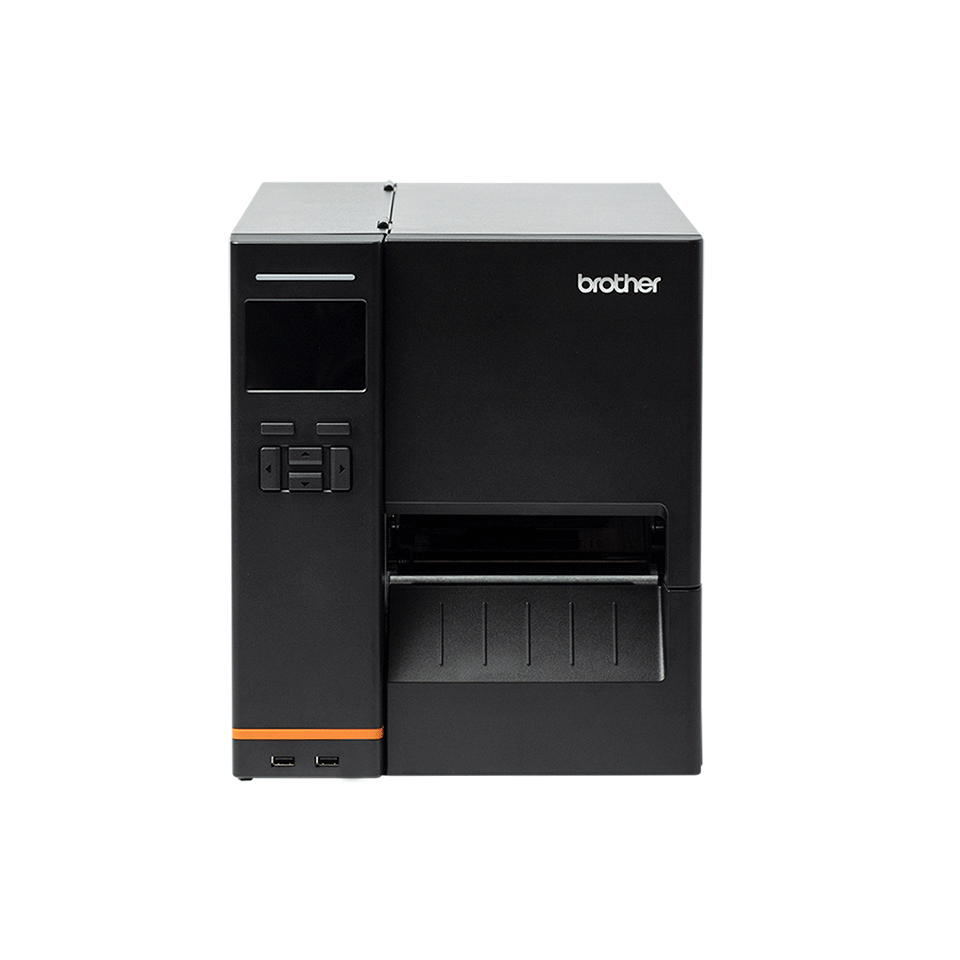

Brother TJ-4520TN industrial label printer transparent background - front

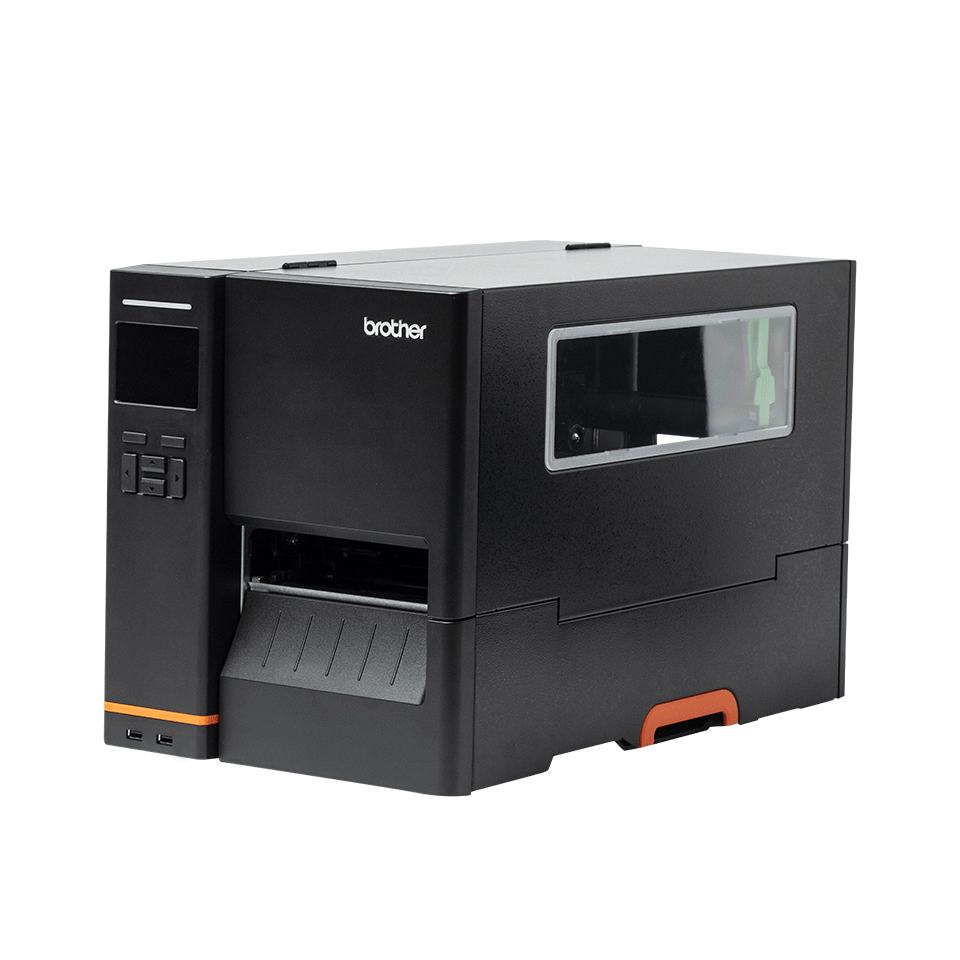

Brother TJ-4520TN industrial label printer transparent background - left

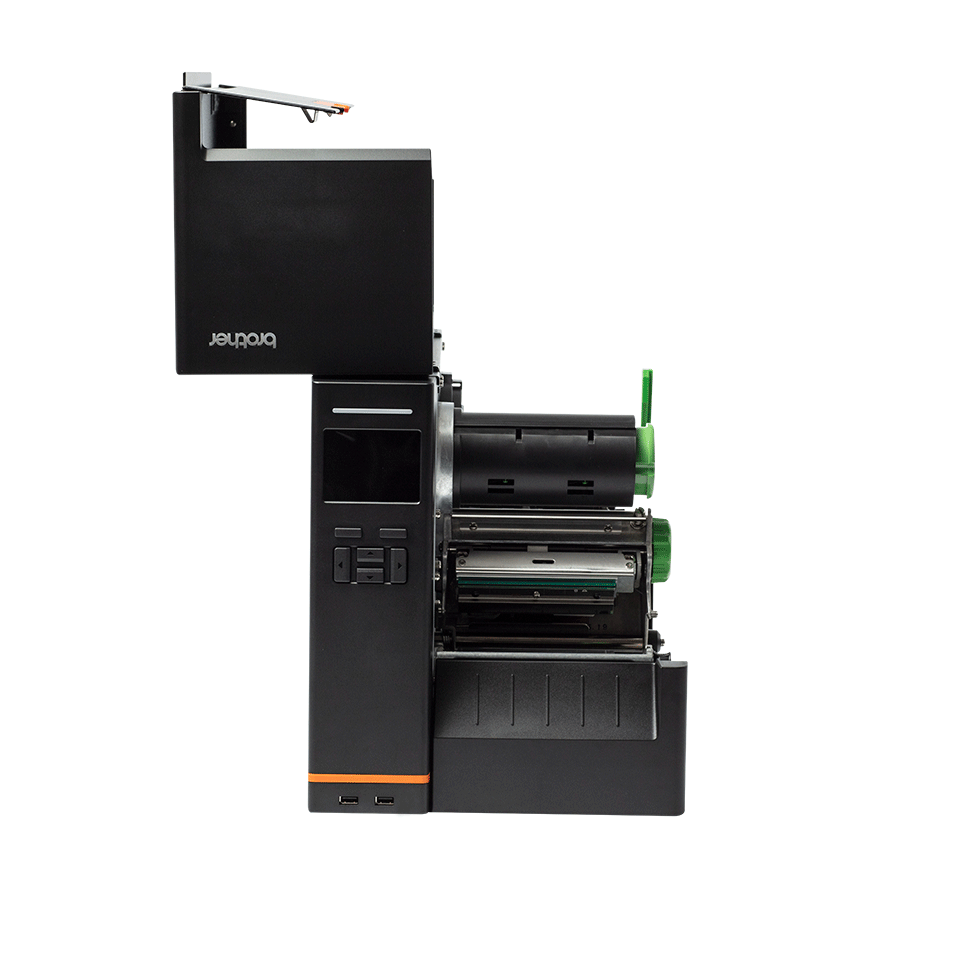

Brother TJ-4520TN industrial label printer transparent background - open

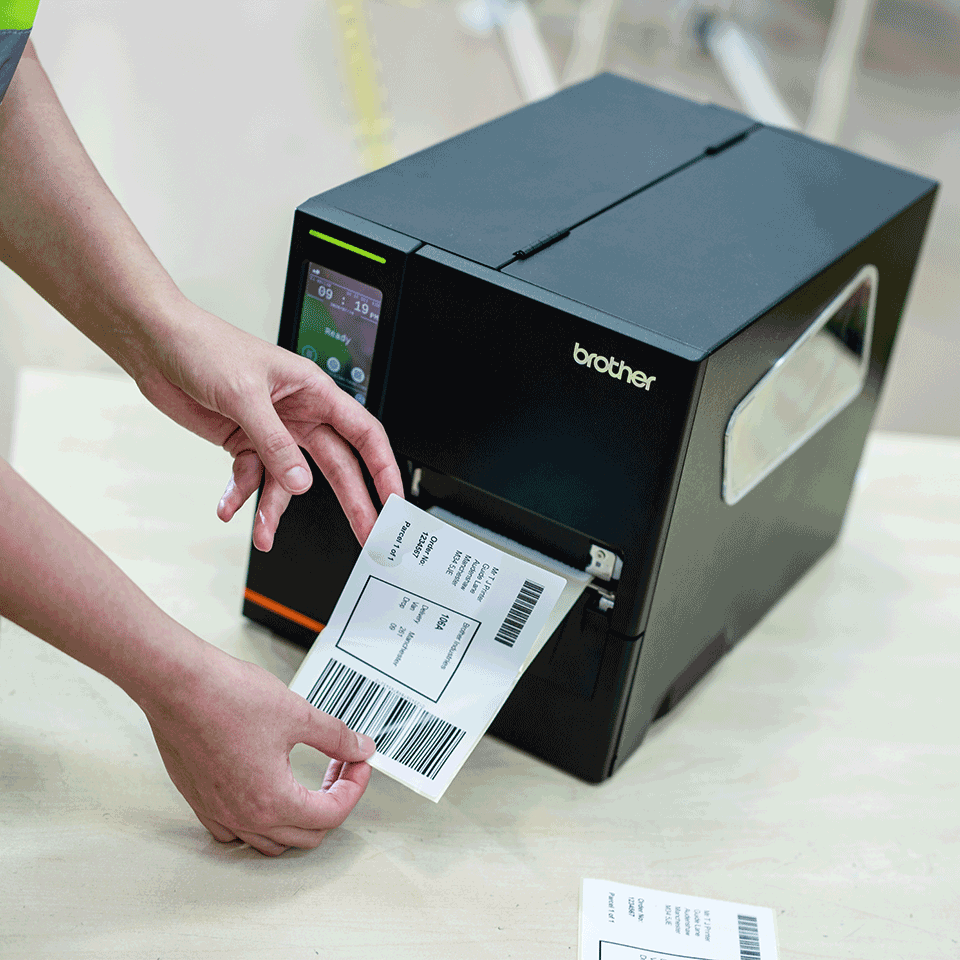

A person removing a printed label from a Brother industrial label printer
A female warehouse worker printing a label from a desktop computer to a Brother industrial label printer

Brother TJ-4520TN Industrial Label Printer

4 inch industrial thermal label printer with LCD display, print width up to 104mm and print speeds up to 12ips

Product Details

  • Print speeds of up to 12ips with 300dpi resolution
  • LCD display to indicate printer status
  • Print width of up to 104mm
  • FBPL-EZD (EPL2, ZPL2, DPL) printer command languages supported
  • High capacity 600m thermal transfer ribbon means fewer media changes
  • Connect easily with USB, USB Host, Serial, Ethernet and optional dual wireless interface (WiFi and Bluetooth)
Brother TJ-4520TN industrial label printer transparent background - front

Product Overview

Print more than 1,000 labels a day, even in the toughest production environments, with the Brother TJ-4520TN industrial label printer.

With fast print speeds, ZPL2 emulation compatibility and high ribbon capacity - this durable industrial printer has been built with you in mind.

Experience efficient labelling solutions and performance you can rely on with the TJ-4520TN industrial label printer.

As well as 3 years return-to-base warranty included as standard on this product, Brother offers a range of enhanced warranties to suit your requirements - including onsite.

Specifications

General

Technology Thermal transfer/Direct thermal
Buttons Power , Feed
Display Colour LCD
LED Power, Status, Error
Memory capacity RAM, FLASH, 256MB, 512MB

Connectivity

Serial Yes
USB interface USB 2.0, USB Host
Wired network interface 10/100 Mbps

Dimensions and weights

Dimensions 276mm (W) x 502mm (D) x 326mm (H)
Weight 15.35

In the box

In the box Quick Setup Guide (QSG), Printer, AC Power supply cord, USB Cable, Documentation

Operating systems & software

Supported Operating Systems Windows (Windows 8.1, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows), Mac OSX (10,11 or higher ), iOS (Labelling,SupportedOperatingSystems,Mac), Android (5 or higher ), For the full list of compatible operating systems visit support.brother.com, Linux

Printing

Maximum Print Length 11430mm
Maximum Print Speed 12 ips
Resolution 300 x 300dpi
Supported commands FBPL-EZD (EPL2, ZPL2, DPL)

Printing

Maximum Print Speed 12 ips
One Dimensional Barcode Symbology Code128, Interleaved 2 of 5, Code39, EAN13(JAN13), EAN8(JAN8), UPC-A, UPC-E, UPC/EAN EXTENSION, CODABAR(NW7), MSI, China post, ITF14, Code11, TELEPEN, TELEPEN number, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS, PLESSEY, Industrial 2-of-5, Standard 2-of-5, EAN14
Printing Maximum Media Width 114mm
Maximum Print Lenght 11430mm
Printing Maximum Print Speed 12 ips
Resolution (dpi) 300 x 300dpi
Two Dimensional Barcode Symbology GS1 Databar Composite, DataMatrix, MaxiCode, Aztec, PDF417, QR Code, Micro PDF417, CODABLOCK F mode, TLC39
Inner Paper Core Ribbon Length 1 paper core: Max OD 90mm, 600m long
Printing Maximum Ribbon Width 114.3mm
Printing Maximum Roll Core Diameter 76.2mm
Printing Maximum Roll Diameter 203mm
Printing Minimum Ribbon Width 25.4mm
Printing Minimum Roll Core Diameter 38.1mm
Supported commands FBPL-EZD (EPL2, ZPL2, DPL)

Solutions

SDK (Software Development Kit) Yes
