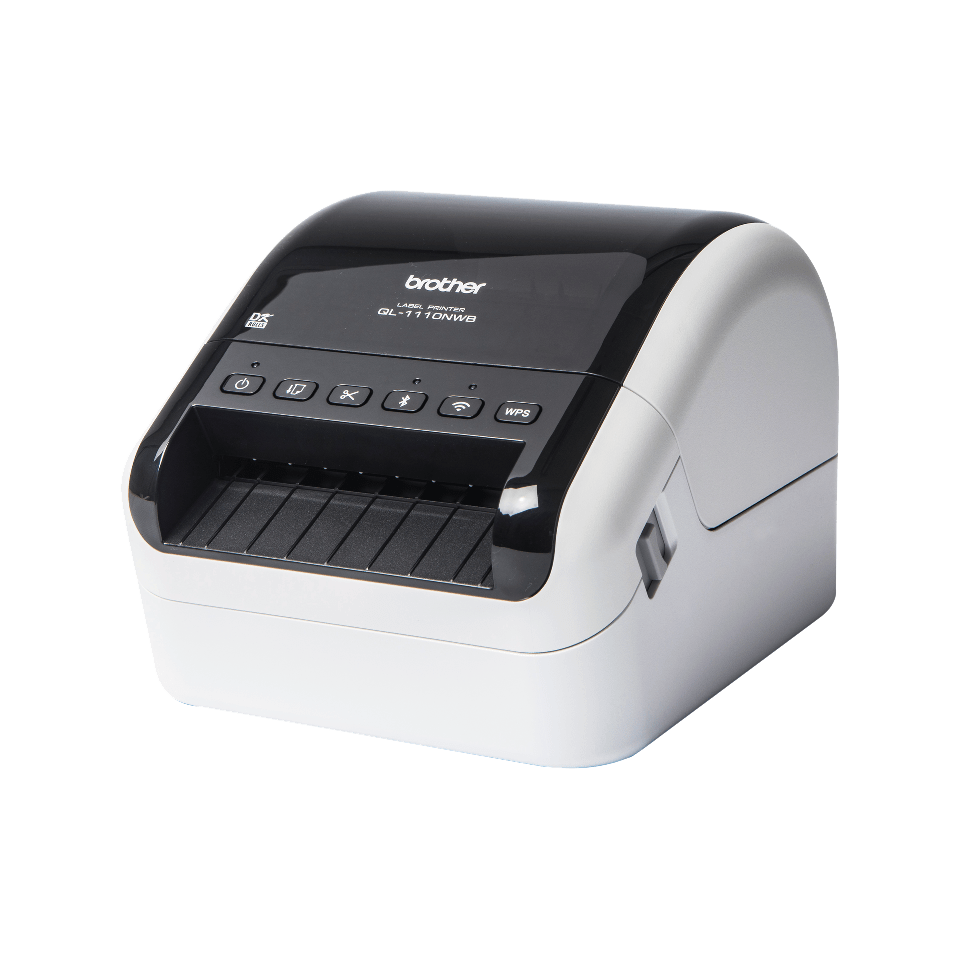

QL1110NWB label printer front view

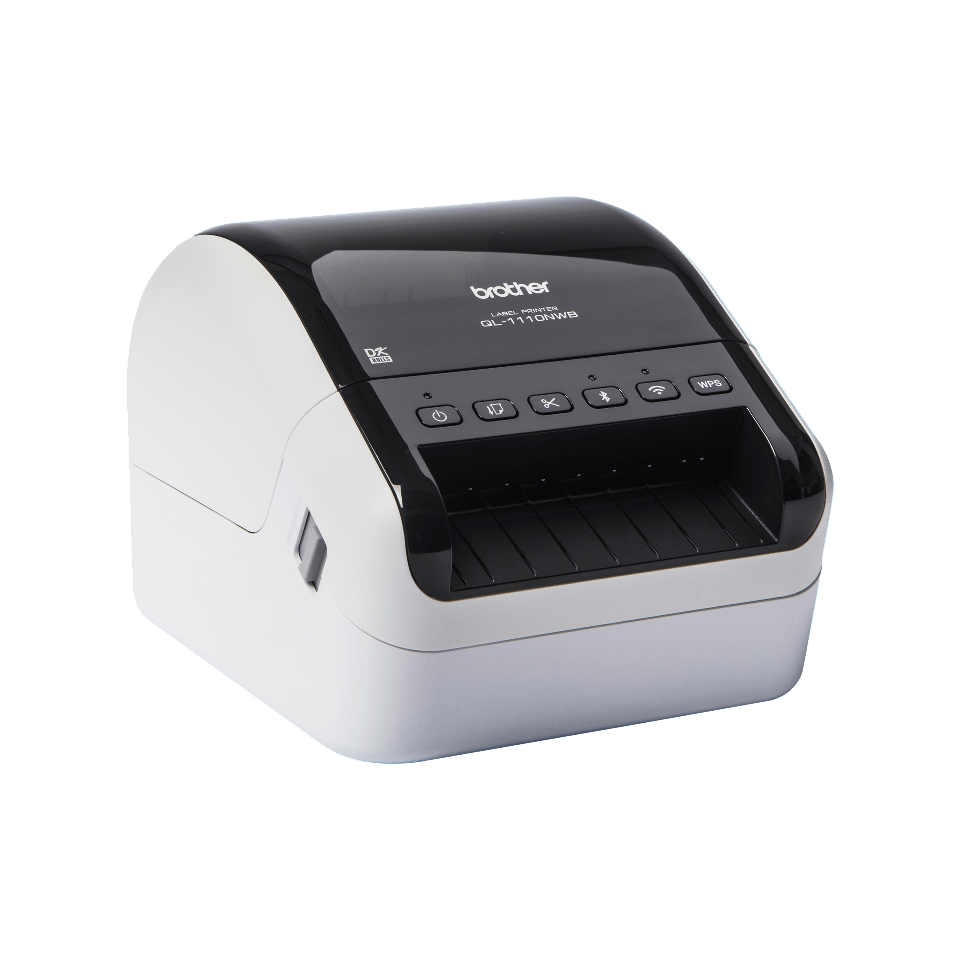

QL1110NWB label printer left view
QL1110NWB label printer right view

QL-1110NWBc wireless shipping and barcode label printer

The fully featured warehouse and mail room label printer for labelling boxes and parcels. Several wired and wireless connectivity options and a true 4 inch (101.6mm) print width offers maximum flexibility.

Product Details

  • USB, Ethernet, Wi-Fi and Bluetooth connectivity with support for MFi and AirPrint

  • Print labels up to 103.6mm wide from PC, Mac, smartphone or tablet

  • Store up to 99 label templates in the printer's memory

  • Supports printing of FBA (Fulfilled By Amazon) labels through special PDF crop print function

  • Built-in cutter to create your own length labels using continuous rolls

  • Various SDK (Software Development Kits) available for Windows, iOS and Android devices

QL1110NWB label printer front view

Product Overview

This wide format shipping label printer has a true 4 inch(101.6mm) print width - to offer maximum compatibility with various shipping label software packages.

Easily send your products to a Fulfilled By Amazon (FBA) warehouse using the special "PDF Crop Print". Simply print the PDF that contains the multiple barcode labels from your FBA account, and let the driver detect, extract and print each individual label to the QL-1110NWBc automatically.

With USB, Ethernet, Wi-Fi and Bluetooth, you can choose to print labels from your PC, Mac, smartphone or tablet, whichever is most convenient. Plus with Apple MFi certification and AirPrint, all your connectivity options are covered.

And with a range of SDK's (Software Development Kits) for Windows, iOS and Android, the QL-1110NWBc can be easily integrated into your own systems and software.

Specifications

General

Machine Type PC Connectable, Desktop
Database upload from PC Yes
Housing colour Glossy black and white
Image upload from PC Yes
Memory Locations 99
Technology Direct thermal
Template upload from PC Yes

Connectivity

USB interface USB 2.0 Full Speed
Wired network interface 10/100 BASE-TX
Wireless network interface IEEE802,11b/g/n (Infrastructure Mode)

Connectivity

Airprint Yes
Bluetooth Yes (Ver 5.2)
Bluetooth Profiles SPP (Serial Port Profile), OPP (Object Push Profile), HCRP (Hard Copy Cable Replacement Profile)
WiFi Direct Yes
MFi Yes
USB interface USB 2.0 Full Speed
Wired network interface 10/100 BASE-TX
Wireless network interface IEEE802,11b/g/n (Infrastructure Mode)

Dimensions and weights

Dimensions 170mm (W) x 222mm (D) x 151mm (H)
Weight 1.73

In the box

In the box User Guide, Warranty Card, Label Printer, USB Cable, Quick Setup Guide, Power Supply Cord, 62mm black on white continuous paper label roll (8m), Large shipping die-cut labels (41 labels)

Operating systems & software

Windows Server 2012, Server 2012R2, Server 2016, Server 2019, Windows 10, Windows 8.1, Windows 11, Server 2022
Supported Operating Systems For the full list of compatible operating systems visit support.brother.com

Printing

Bitmap Fonts Brougham, Brussels, Helsinki, Letter Gothic Bold, San Diego
One Dimensional Barcode Symbologies CODE39, CODE128, UPC-A, UPC-E, EAN8, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), EAN13(JAN13), GS1 DataBar(RSS)(GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked)
Printing Maximum Label Width 103.6mm
Printing Maximum Print Length 3000mm
Printing Maximum Print Width 101.66mm
Printing Outline Vector Fonts Brussels, Helsinki, Letter Gothic
Printing Resolution 300 x 300 (standard)
Standard Print Speed (mm per second) (24) 110mm per second
Two Dimensional Barcode Symbologies PDF417(Standard, Truncate, Micro), QR Code (Model1, Model2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode, CODE93, POSTNET, UPC-E EXTENSION, MSI, Aztec

Editor label design

Database File Compatibility Microsoft Access, Microsoft Excel
Microsoft Office AddIn Excel, Outlook, Word
Screen Capture Yes
Fonts All installed truetype fonts
Frames 126
Software Date And Time Stamp Date and time
Software Label Orientations Horizontal, Vertical
Software Sequential Numbering Yes
Software Text Alignment Centre, Left, Justify, Right
Software Typestyles Bold, Horizontal lines, Invert, Italic, Normal, Shadow, Shadow light, Surround
Software Vertical Print Yes

Solutions

SDK (Software Development Kit) Yes

Caveats

  • [24] Brother standard test environment. Using DK-11201 standard address labels and USB connection
