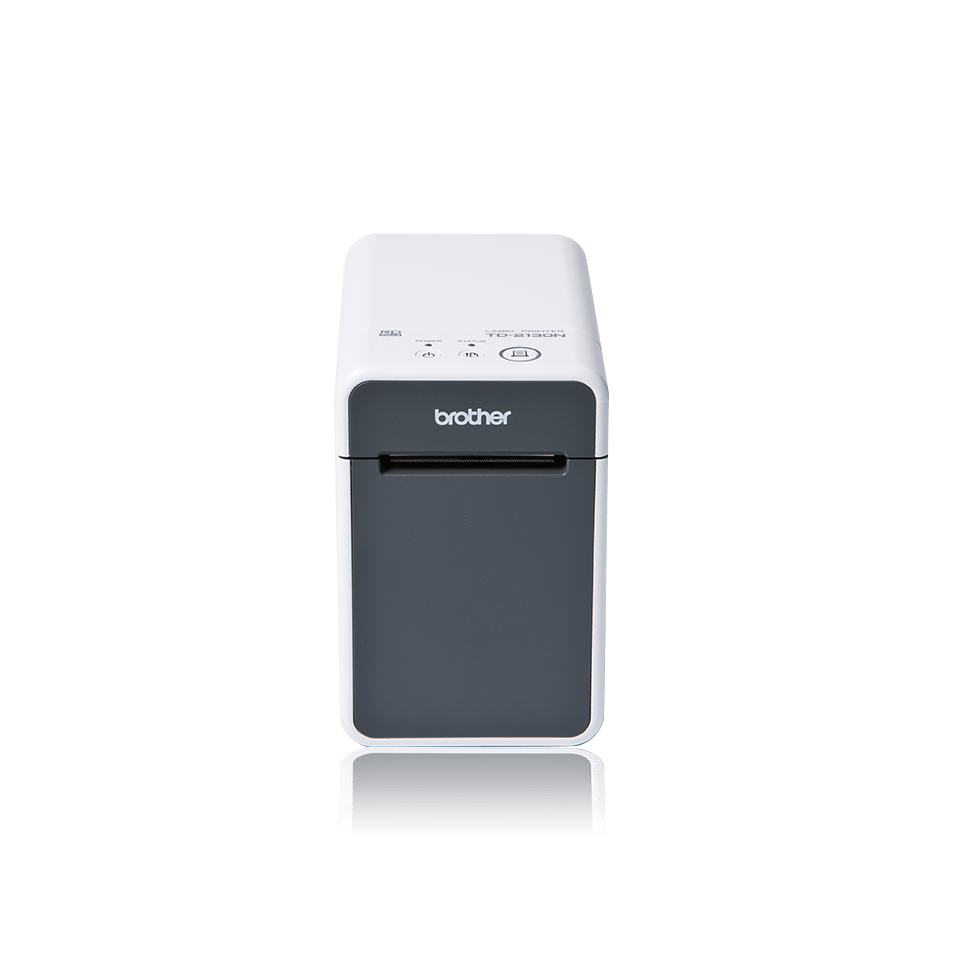

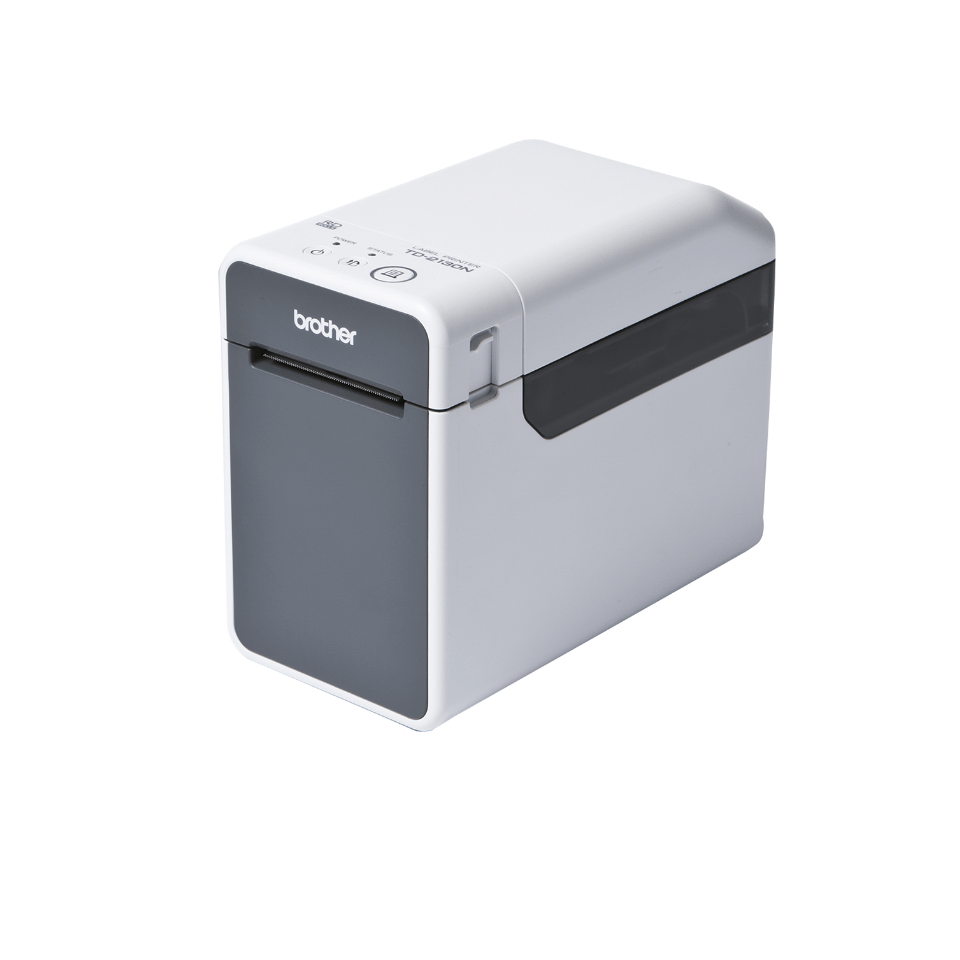

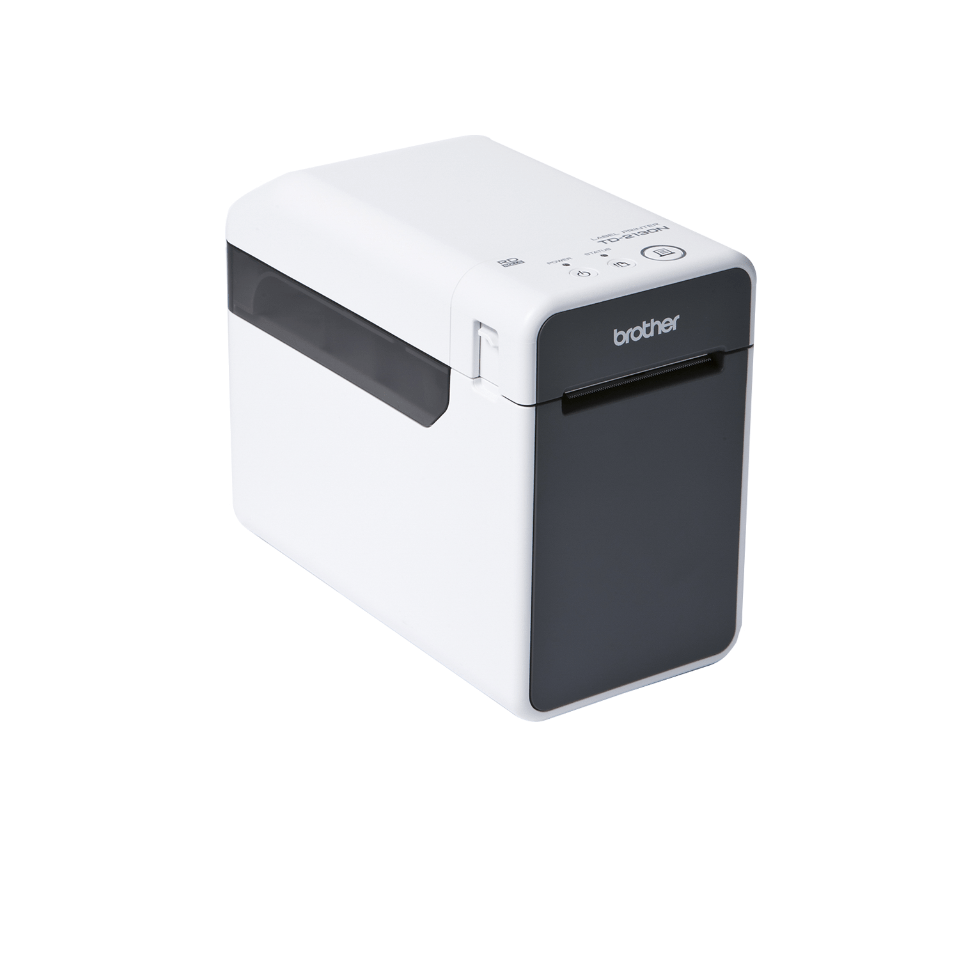

TD-2135NWB Desktop Label Printer with USB, WiFi and Bluetooth

Versatile, high-resolution desktop label printer with built-in network, wireless and bluetooth connectivity. Print crisp, professional quality labels, wristbands and receipts with 300dpi resolution.

Product Details

  • High quality 300dpi print resolution
  • Network capability / USB, serial, WiFi and bluetooth connectivity
  • ZPL II printer language emulation
  • Free 3 year return to base warranty.  Advanced exchange service up to five years available to purchase.
  • Print from a PC or mobile device, or add on optional touch panel display (PA-TDU-001) for stand-alone printing.
  • Ready to integrate with iOS and Android apps
TD2135NWB_main

Product Overview

The TD-2135NWB's range of specialised features mean it is the perfect label printer for healthcare, retail warehousing, logistics and manufacturing – plus any other sector where you need to be able to print receipts, labels or wristbands. The built-in network, WiFi and bluetooth connectivity provides the flexibility to print wirelessly, or by using the available apps on your smartphone or tablet.

Ideal for printing stock rotation labels, pre-packaged food ingredients labels, barcode labels, specimen, pathology and phlebotomy labels and shelf edge labels.

With a higher print resolution of 300dpi, the TD-2135NWB prints professional, high-quality labels at speeds of 152mm/sec.

Specifications

General

Technology Direct thermal
Buttons Power , Feed
Memory capacity RAM, FLASH, 64MB, 256MB

Connectivity

Serial Yes (Requires optional cable)
USB interface USB 2.0 Full Speed
Wired network interface 10/100 BASE-TX

Connectivity

Bluetooth Yes (Ver 5.2)
Bluetooth Profiles SPP (Serial Port Profile), OPP (Object Push Profile), HCRP (Hard Copy Cable Replacement Profile), GATT (Bluetooth Low Energy)
WiFi Direct IEEE802,11n, Yes, WiFi (802,11 a/b/g/n)
Serial Yes (Requires optional cable)
USB interface USB 2.0 Full Speed
Wired network interface 10/100 BASE-TX

Dimensions and weights

Dimensions 110mm (W) x 215mm (D) x 173mm (H)
Weight 1.34

In the box

In the box Printer, AC adaptor, AC Power supply cord, USB Cable, Quick Setup Guide (QSG)

Operating systems & software

Supported Operating Systems Windows (Labelling,SupportedOperatingSystems,Windows, Windows 8.1, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows), Android (5 or higher ), iOS (Labelling,SupportedOperatingSystems,Mac), For the full list of compatible operating systems visit support.brother.com

Printing

Maximum Print Speed 152mm/sec
Maximum Print Length 1000mm
Resolution 300
Supported commands P-touch Template, CPCL emulation, ESC/P

Printing

Maximum Print Speed 152mm/sec
One Dimensional Barcode Symbology CODABAR(NW7), Code128, Code39, Code93, EAN13(JAN13), EAN8(JAN8), GS1 DataBar (RSS), GS1 Databar(Omnidirectional/Truncated/Stacked/Stacked Omnidirectional/Limited/Expanded/Expanded Stacked), GS1-128(UCC/EAN-128), ITF(I-2/5), MSI, POSTNET, UPC-A, UPC-E, UPC/EAN EXTENSION
Two Dimensional Barcode Symbology QR Code, MaxiCode, PDF417, DataMatrix, Aztec
Maximum Print Lenght 1000mm
Printing Maximum Print Speed 152mm/sec
Printing Resident Fonts Letter Gothic Bold, Gothic, Brougham, Brussels, Helsinki, San Diego, Letter Gothic Regular
Resolution (dpi) 300
Printing Maximum Roll Diameter 127mm
Printing Minimum Label Width 19mm
Supported commands P-touch Template, CPCL emulation, ESC/P

Solutions

SDK (Software Development Kit) Yes

Solutions

SDK (Software Development Kit) Yes
New Tab

Software Security Updates Guarantee

Brother devices conform to The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023 and receive guaranteed software security updates until at least five years after the device is last in production.

After the initial support period, Brother shall use all reasonable endeavours to provide software updates for as long as reasonably practicable.

If you already own a Brother device, visit support.brother.com for information specific to your device.
