TD-4550DNWB Professional Bluetooth, Wireless Desktop Label Printer
Print high quality, continuous labels using media up to 118mm/4.65 inch wide. With built-in network, wireless and Bluetooth connectivity.Product Details
- User-friendly backlit LCD screen
- Professional quality up to 300dpi print resolution
- Fast print speeds up to 6 inches per second
- Prints width up to 4.27 inches / 108mm
- Easy set-up with automatic media configuration
- Ready to integrate with iOS and Android apps
Product Overview
With an intuitive LCD screen, the TD-4550DNWB is a user-friendly desktop label printer. The professional quality resolution, makes this label maker ideal for printing 2D barcodes. Barcodes are easily scanned and quickly processed.
The Bluetooth connectivity allows for setup and configuration with a smartphone or tablet using the Mobile Deploy App. Whilst wireless connectivity removes the need of cables for the network.
Using direct thermal print technology, prevents sheet label wastage. Print only the exact number of labels that you need.
With automatic media calibration, the length and width of your media is calculated. You simply insert your new roll of labels and follow the screen prompts.

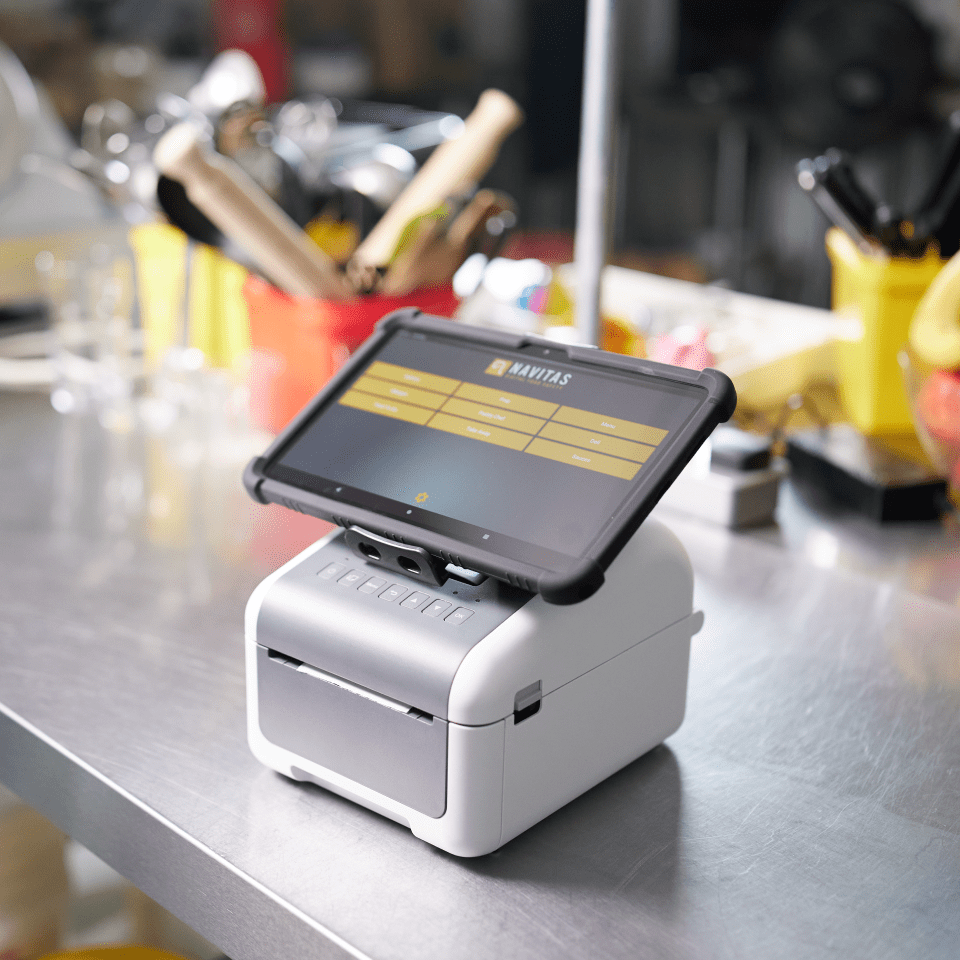

Customise to your specific requirements with a range of accessories including a peeler, cutter and a tablet holder. Making the TD-4550DNWB a truly versatile label maker.
Related Products
-
The BDE-1J000102-102 continuous label roll, measuring 102mm wide and 58m in length, has been Certified by Brother International Europe. Each purchase contains 8 rolls per order.£144.00Inc. VAT£120.00Ex. VATThis product is available from our authorised retailers
-
The BDE-1J026051-060 die-cut label roll, measuring 51mm x 26mm and containing 500 labels per roll has been Certified by Brother International Europe. Each purchase contains 12 rolls per order.£39.60Inc. VAT£33.00Ex. VATThis product is available from our authorised retailers
-
The BDE-1J026051-102 die-cut label roll, measuring 51mm x 26mm and containing 1,900 labels per roll has been Certified by Brother International Europe. Each purchase contains 16 rolls per order.£144.00Inc. VAT£120.00Ex. VATThis product is available from our authorised retailers
-
The BDE-1J026076-102 die-cut label roll, measuring 76mm x 26mm and containing 1,900 labels per roll has been Certified by Brother International Europe. Each purchase contains 8 rolls per order.£120.00Inc. VAT£100.00Ex. VATThis product is available from our authorised retailers
-
The BDE-1J044076-066 die-cut label roll, measuring 76mm x 44mm and containing 400 labels per roll has been Certified by Brother International Europe. Each purchase contains 8 rolls per order.£48.00Inc. VAT£40.00Ex. VATThis product is available from our authorised retailers
-
The BDE-1J050102-102 die-cut label roll, measuring 102mm x 50mm and containing 1,050 labels per roll has been Certified by Brother International Europe. Each purchase contains 8 rolls per order.£124.80Inc. VAT£104.00Ex. VATThis product is available from our authorised retailers
-
The BDE-1J152102-058 die-cut label roll, measuring 102mm x 152mm and containing 85 labels per roll has been Certified by Brother International Europe. Each purchase contains 20 rolls per order.£120.00Inc. VAT£100.00Ex. VATThis product is available from our authorised retailers
-
The BDE-1J152102-102 die-cut label roll, measuring 102mm x 152mm and containing 350 labels per roll has been Certified by Brother International Europe. Each purchase contains 8 rolls per order.£158.40Inc. VAT£132.00Ex. VATThis product is available from our authorised retailers
-
The BDL-7J000058-040 continuous receipt roll, measuring 58mm in width, has been Certified by Brother International Europe. Each purchase contains 24 rolls per order.£72.00Inc. VAT£60.00Ex. VATThis product is available from our authorised retailers
-
The BDL-7J000058-102 continuous receipt roll, measuring 58mm in width, has been Certified by Brother International Europe. Each purchase contains 8 rolls per order.£83.90Inc. VAT£69.92Ex. VATThis product is available from our authorised retailers
-
The BDL-7J000076-066 continuous receipt roll, measuring 76mm in width, has been Certified by Brother International Europe. Each purchase contains 8 rolls per order.£43.20Inc. VAT£36.00Ex. VATThis product is available from our authorised retailers
-
The BDL-7J000102-058 continuous receipt roll, measuring 101.6mm in width, has been Certified by Brother International Europe. Each purchase contains 20 rolls per order.£120.00Inc. VAT£100.00Ex. VATThis product is available from our authorised retailers
-
This product is available from our authorised retailers
-
This product is available from our authorised retailers
-
This product is available from our authorised retailers
-
This product is available from our authorised retailers
-
This product is available from our authorised retailers
-
This product is available from our authorised retailers
-
This product is available from our authorised retailers
-
This product is available from our authorised retailers
-
This product is available from our authorised retailers
-
This product is available from our authorised retailers
-
This product is available from our authorised retailers
-
This product is available from our authorised retailers
-
Label cutter for the TD-4D series label, receipt and wristband printers.£107.18Inc. VAT£89.32Ex. VATThis product is available from our authorised retailers
-
Thermal Print Head (300dpi) for the TD-4520DN and TD-4550DNWB label printers£239.18Inc. VAT£199.32Ex. VATThis product is available from our authorised retailers
-
Label Peeler for the Brother TD-4D series label, receipt and wristband printers£49.63Inc. VAT£41.36Ex. VATThis product is available from our authorised retailers
-
Platen Roller (300dpi) for the TD-4520DN and TD-4550DNWB label printers£20.06Inc. VAT£16.72Ex. VATThis product is available from our authorised retailers
-
Tablet holder for the TD-4D series label, receipt and wristband printers.This product is available from our authorised retailers
Specifications
General
| Technology | Direct thermal |
| Buttons | Power , Feed, Print, Back, Menu |
| LED | Power, Status, Error, Data |
| Memory capacity | RAM, FLASH, 64MB, 256MB |
Connectivity
| Bluetooth | Yes (Ver 4.2) |
| Bluetooth Profiles | SPP (Serial Port Profile), OPP (Object Push Profile), HCRP (Hard Copy Cable Replacement Profile), Bluetooth Classic, GATT (Bluetooth Low Energy) |
| Serial | Yes |
| USB interface | USB 2.0 Full Speed, USB Host |
| Wired network interface | 10/100 BASE-TX |
| Wireless network interface | IEEE802,11g/n (Wireless direct), IEEE802,11a/b/g/n (Infrastructure Mode) |
Dimensions and weights
| Dimensions | 180mm (W) x 224mm (D) x 155mm (H) |
| Weight | 2.08 |
In the box
| In the box | Quick Setup Guide (QSG), Printer, AC adaptor, AC Power supply cord, USB Cable, Warranty Card |
Operating systems & software
| Supported Operating Systems | Windows (Windows 8.1, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows), Android (4.0.3 or higher), iOS (8 or higher), For the full list of compatible operating systems visit support.brother.com, Linux |
Printing
| One Dimensional Barcode Symbology | Code128, Code39, EAN13(JAN13), EAN8(JAN8), UPC-A, UPC-E, UPC/EAN EXTENSION, CODABAR(NW7), POSTNET, MSI, GS1-128(UCC/EAN-128), ITF(I-2/5), Intelligent Mail Barcode, GS1 Databar(Omnidirectional/Truncated/Stacked/Stacked Omnidirectional/Limited/Expanded/Expanded Stacked) |
| Two Dimensional Barcode Symbology | DataMatrix, Aztec, PDF417, QR Code |
| Printing Maximum Print Speed | 6 ips |
| Printing Resident Fonts | Letter Gothic Bold, Gothic, Brougham, Brussels, Helsinki, San Diego |
| Resolution (dpi) | 300 x 300dpi |
| Printing Maximum Roll Diameter | 127mm |
| Printing Minimum Label Width | 19mm |
| Printing Minimum Roll Core Diameter | 12.7mm |
| Supported commands | P-touch Template, ZPL 2 emulation, CPCL emulation, ESC/P, EPL2, DPL |
Solutions
| SDK (Software Development Kit) | Yes |
Software Security Updates Guarantee
Brother devices conform to The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023 and receive guaranteed software security updates until at least five years after the device is last in production.
After the initial support period, Brother shall use all reasonable endeavours to provide software updates for as long as reasonably practicable.
If you already own a Brother device, visit support.brother.com for information specific to your device.
Software support
Brother provides the tools for developers to integrate their printing applications. Printer drivers are available for Windows Operating Systems. Software Development Kits are available to embed label printing into existing software programs. Software development kit's available from: https://atyourside.brother.co.uk/developer-centre
Remotely update
Enabling IT administrators to remotely update and configure many Brother label printers. Updates are easily uploaded to an online location and the URLs shared with users to install the latest configuration via the Mobile Deploy App.
Print from Windows PC
Create customer labels using Brother P-touch Editor. Easily add your company logo or select from hundreds of built-in images, symbols, barcodes and frames. Also, link to excel data to batch print labels.
Intuitive LCD
The integrated LCD screen makes setting-up and configuration a simple task. The backlit screen with user-friendly buttons, helps you to quickly get up and running.
Integrated USB host
A USB-host is built-in as standard. Enabling a barcode reader or weighing scales to be connected. Barcodes are read to create print information. Using pre-defined templates, your information is printed on to labels.
Crop function
Reduce the amount of paper waste by adopting this easy to use feature. Whether it is an A4 sheet of product or shipping labels.
The barcode information contained within the document is automatically scanned and processed. Individual labels are then printed from your TD-4550DNWB desktop label printer.
Flexible connectivity
Use the TD-4550DNWB where you need it, without the need of trailing wires. With built-in WiFi and Bluetooth connectivity, the TD-4550DNWB is truly versatile. Many users can also share the label printer, with the integrated network port.
Seamless integration
For ease of integration, many printer command languages are supported. Including ZPL II emulation, Raster, CPCL emulation enabling integration into legacy systems.
