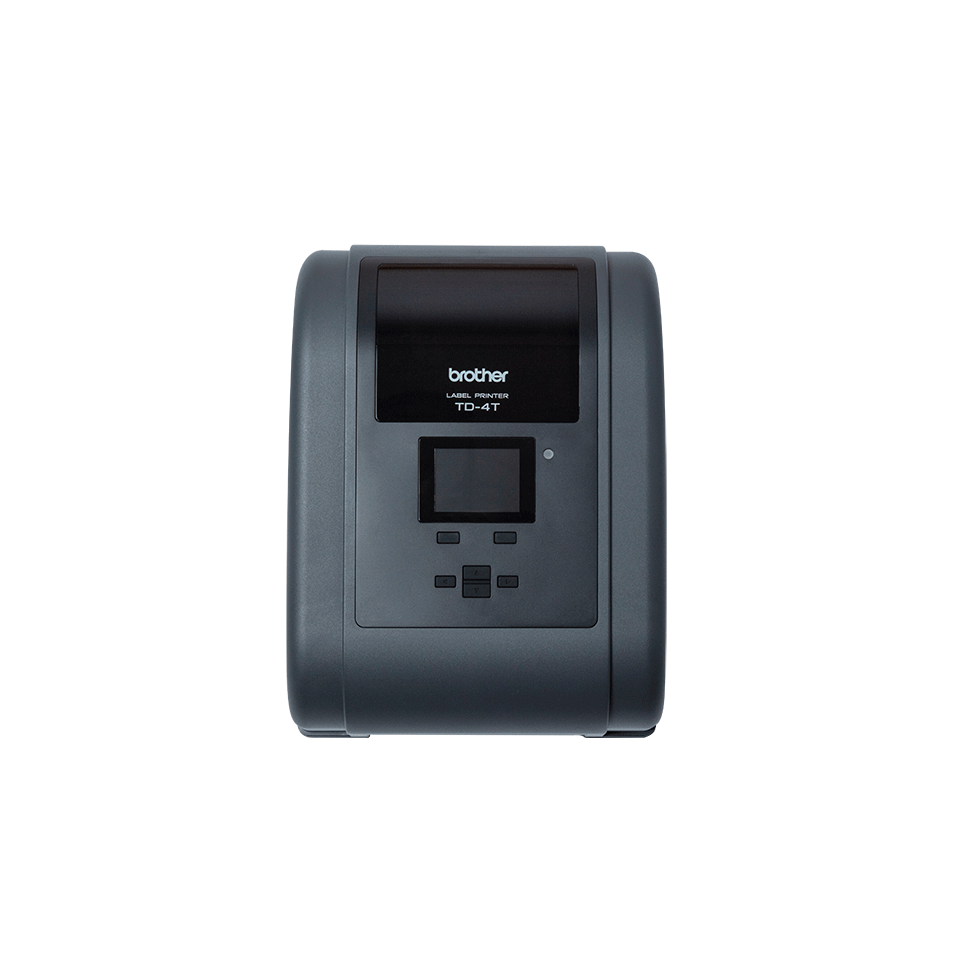

TD4750TNWB label desktop printer front with no background

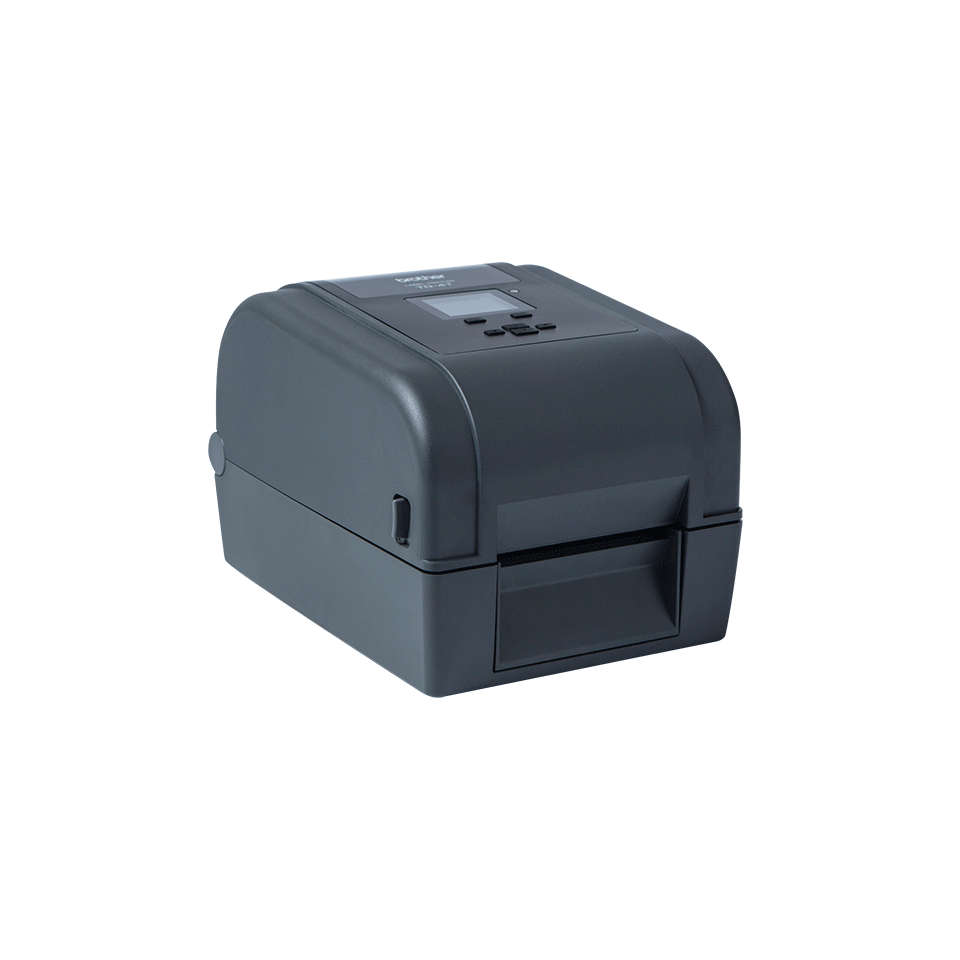

TD4750TNWB label desktop printer left with no background

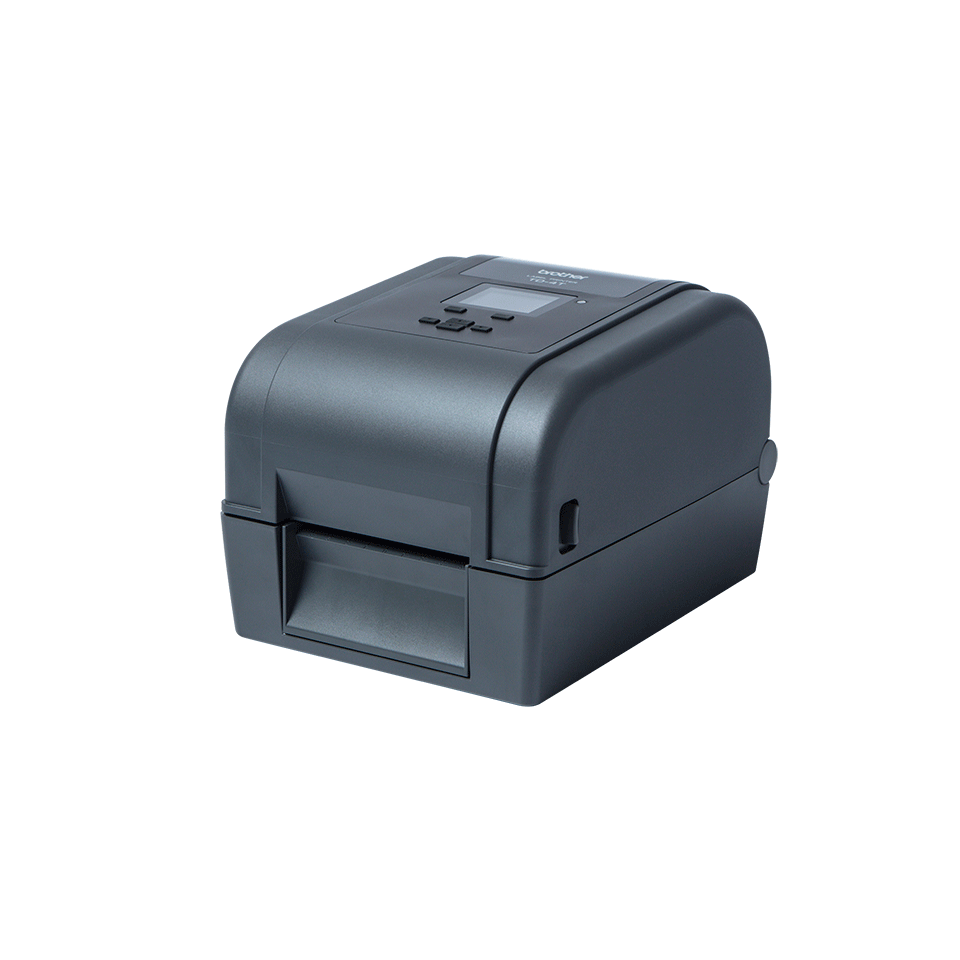

TD4750TNWB label desktop printer right with no background

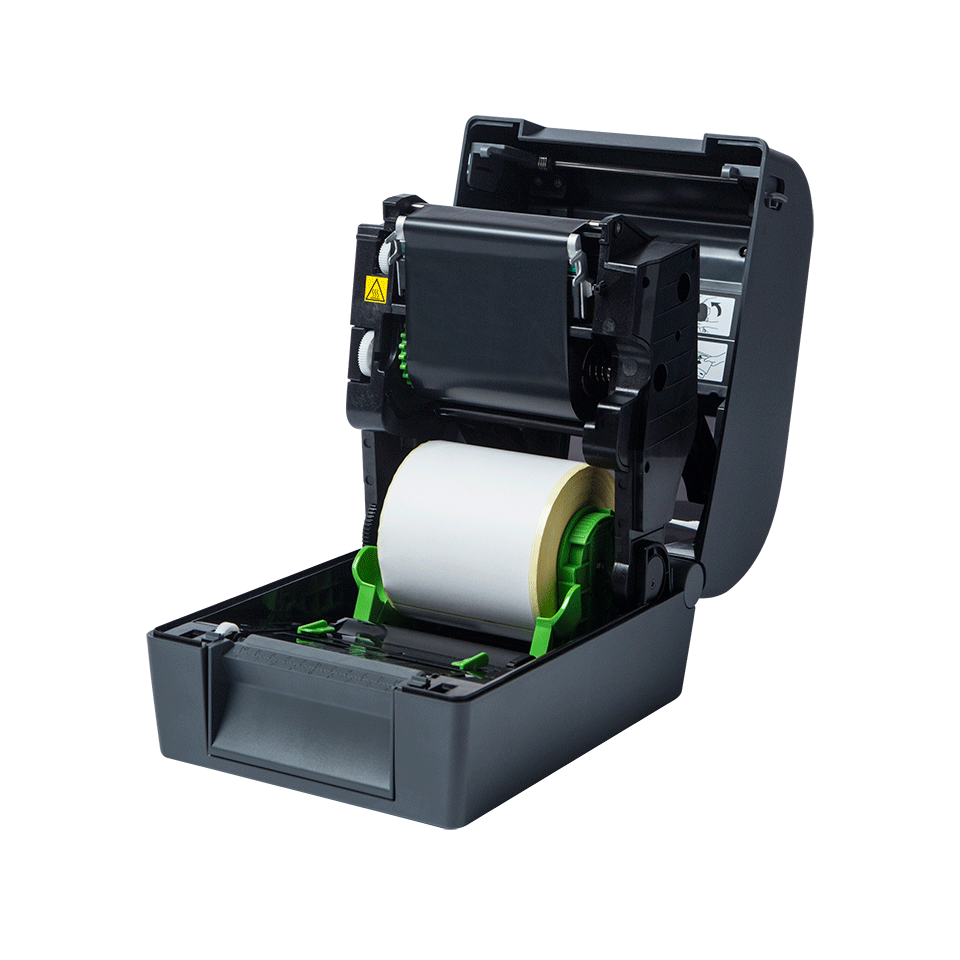

TD4750TNWB label printer open with label and ribbon inside
TD4750TNWB label desktop printer top with no background

TD-4750TNWB Desktop Label Printer

4" desktop printer for high-quality, continuous label printing

Product Details

  • Ease of use with 2.3" colour LCD display
  • Thermal transfer and direct thermal printing technology
  • Range of connectivity options including USB, Network, WiFi and Bluetooth
  • High capacity with 300m ribbon, minimising downtime
  • 300dpi high resolution printing for crisp text and barcodes
  • Fast print speeds up to 6 inches per second
TD4750TNWB label desktop printer front with no background

Product Overview

The TD-4750TNWB versatile thermal label printer uses high capacity thermal transfer ink ribbons for durable labelling and ultimate productivity. Seamlessly integrate into your existing systems with industry standard printer command languages.

Specifications

General

Technology Thermal transfer/Direct thermal
Buttons Power , Feed
Display LCD Display
LED Power, Data, Error
Memory capacity FLASH, 128MB, RAM, 128MB

Connectivity

Serial Yes
USB interface USB 2.0, USB Host
Wired network interface 10/100 Mbps
Wireless network interface 802,11 a/b/g/n

Connectivity

Bluetooth Yes (Ver 5.0)
Bluetooth Profiles SPP (Serial Port Profile), Bluetooth Classic, GATT (Bluetooth Low Energy)
Serial Yes
USB interface USB 2.0, USB Host
Wired network interface 10/100 Mbps
Wireless network interface 802,11 a/b/g/n

Dimensions and weights

Dimensions 219mm (W) x 284mm (D) x 191mm (H)
Weight 3.0

In the box

In the box Quick Setup Guide (QSG), Printer, AC adaptor, AC Power supply cord, USB Cable

Operating systems & software

Supported Operating Systems Windows (Windows 8.1, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows), Mac OSX (Mac OS X 10.8 or higher), For the full list of compatible operating systems visit support.brother.com, Linux

Printing

Maximum Print Speed 6 ips
Maximum Print Length 11430mm
Resolution 300 x 300dpi
Supported commands FBPL-EZD (EPL2, ZPL2, DPL)

Printing

Maximum Print Speed 6 ips
One Dimensional Barcode Symbology Code128, Interleaved 2 of 5, Code39, EAN13(JAN13), EAN8(JAN8), UPC-A, UPC-E, UPC/EAN EXTENSION, CODABAR(NW7), MSI, China post, ITF14, Code11, TELEPEN, TELEPEN number, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS, PLESSEY, POSTNET
Two Dimensional Barcode Symbology GS1 Databar Composite, DataMatrix, MaxiCode, Aztec, PDF417, QR Code, Micro PDF417
Maximum Print Lenght 11430mm
Printing Maximum Print Speed 6 ips
Resolution (dpi) 300 x 300dpi
Printing Maximum Roll Core Diameter 38.1mm
Printing Maximum Roll Diameter 127mm
Printing Minimum Label Width 20mm
Printing Minimum Roll Core Diameter 25.4mm
Supported commands FBPL-EZD (EPL2, ZPL2, DPL)

Solutions

SDK (Software Development Kit) Yes

Solutions

SDK (Software Development Kit) Yes

Warranty

Warranty 3 years
New Tab

Software Security Updates Guarantee

Brother devices conform to The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023 and receive guaranteed software security updates until at least five years after the device is last in production.

After the initial support period, Brother shall use all reasonable endeavours to provide software updates for as long as reasonably practicable.

If you already own a Brother device, visit support.brother.com for information specific to your device.


Connectivity to suit your requirements

With integrated USB, Ethernet and Serial ports as standard, the Brother TD-4750TNWB will have no problems connecting to your existing equipment and infrastructure.

Additional connectivity includes WiFi and Bluetooth.




High quality thermal transfer printing

This 4" desktop printer offers 300 dpi for crisp, easy-to-read text and barcodes, time after time, to meet the needs of your demanding workflow.


Customisation with optional accessories

The TD-4750TNWB offers optional accessories including a label cutter, automatic label peeler and external roll holder to further meet your requirements and increase your efficiency.


Easy to use

The colour LCD ensures ease-of-use and the supported printer command languages and Software Development Kits make integration equally as easy.


Range of applications to suit your requirements

Suitable for a range of industries, the TD-4750TNWB thermal label printer can be used for applications in retail, healthcare, warehousing & logistics and more.


Ultimate productivity

Experience high-performance, thermal desktop printing up to 4" in width for ultimate productivity. The TD-4750TNWB label, receipt and wristband printer offers fast print speeds of up to 6 inches per/second and minimises downtime with 300 metre ribbons, meaning less ribbon changes.
