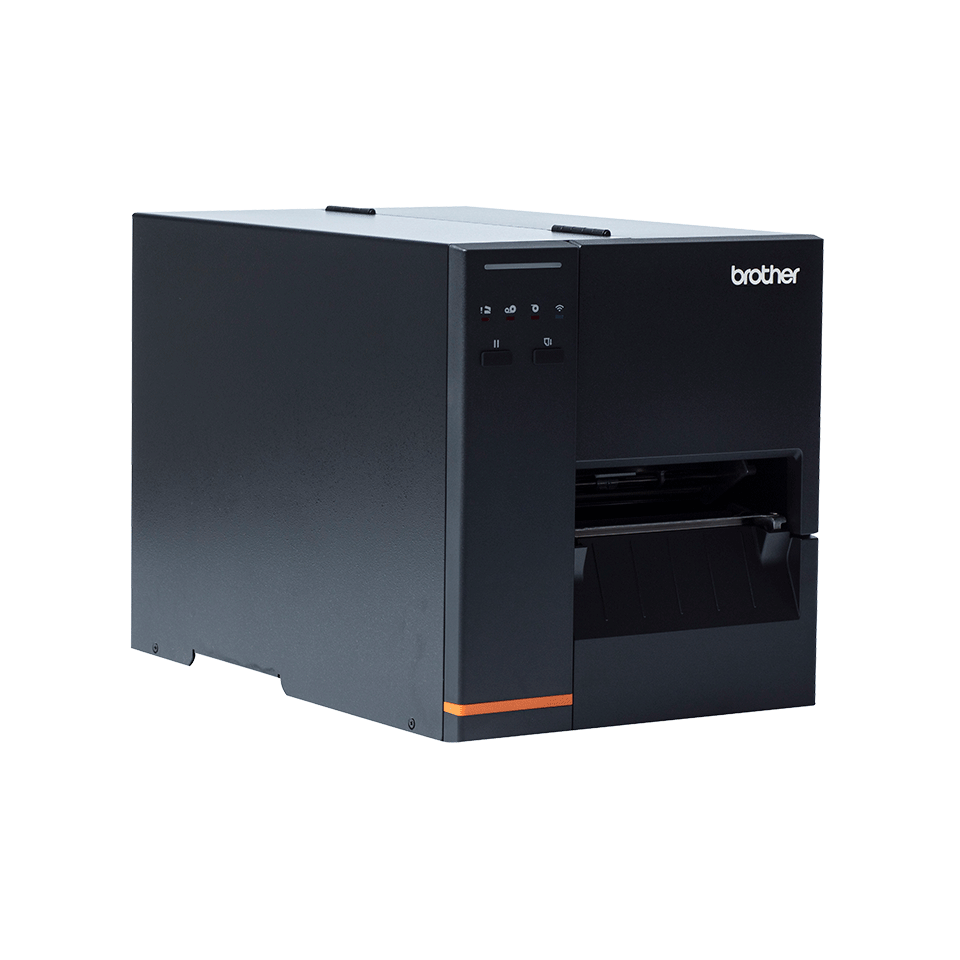

Brother TJ4120TN industrial label printer transparent background - front

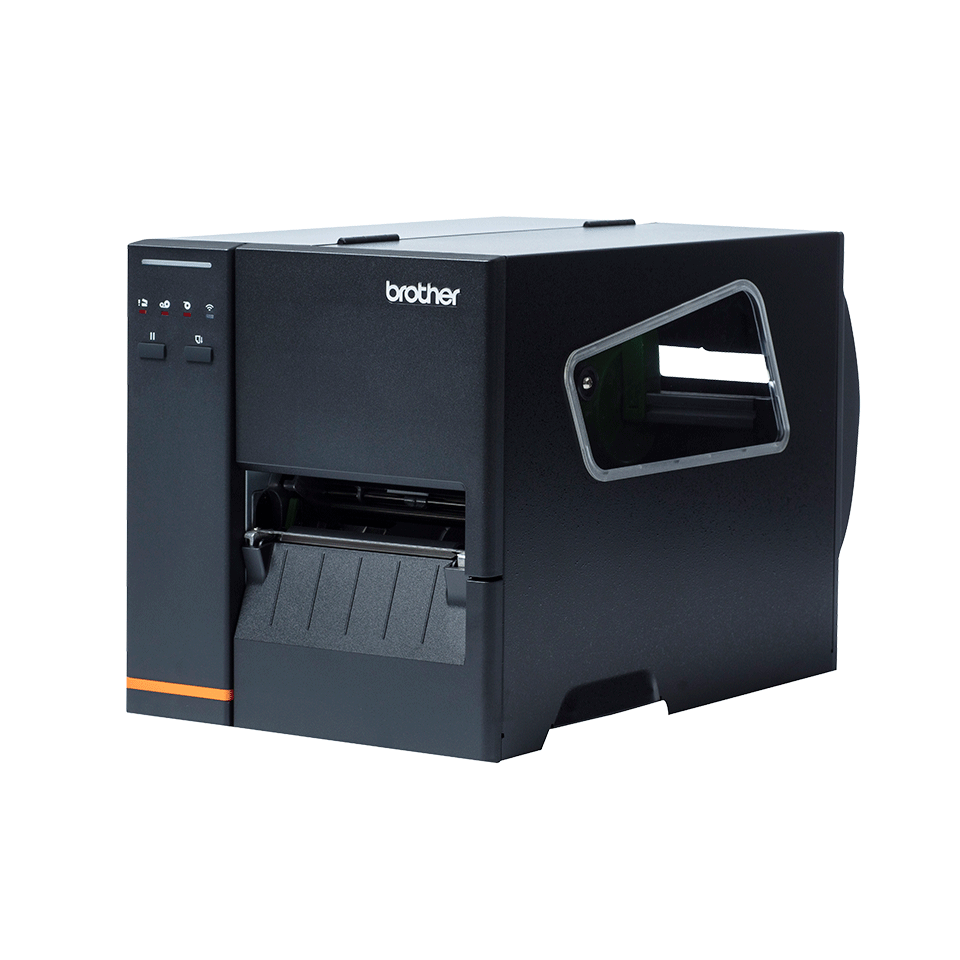

Brother TJ4120TN industrial label printer transparent background - left
Brother TJ4120TN industrial label printer transparent background - right
TJ4020TN_2
TJ4020TN_3
TJ4020TN_4

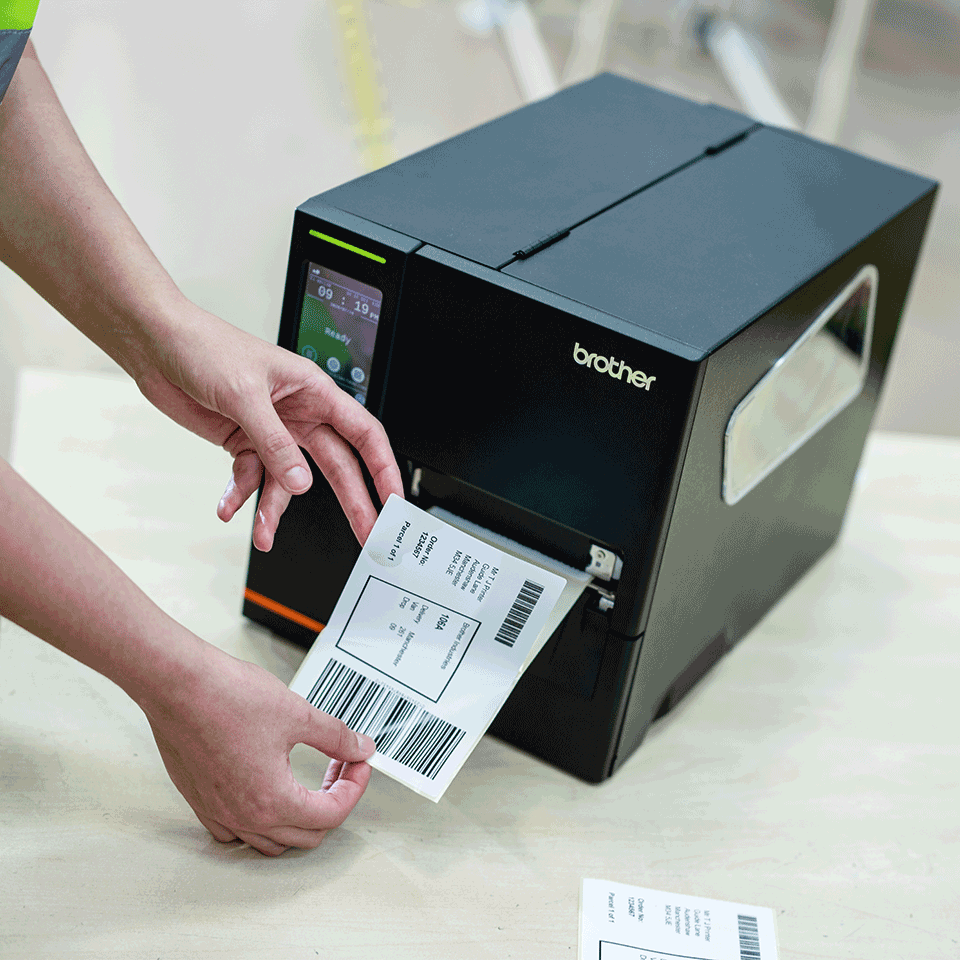

TJ4120TN_label_printout

TJ-4120TN Industrial label printer

4" industrial thermal label printer with 300dpi print resolution and print width up to 105.7mm

Product Details

  • Print speeds of up to 7ips with 300dpi resolution
  • LED notification to indicate printer status
  • Print width of up to 105.7mm
  • FBPL-EZD (EPL2, ZPL2, DPL) printer command languages supported
  • High capacity 450m thermal transfer ribbon means fewer consumable changes
  • Connect easily with USB, USB Host, Serial, Ethernet and WiFi (optional)
Brother TJ4120TN industrial label printer transparent background - front

Product Overview

Print labels with ease, even in the toughest production environments, with the Brother TJ-4120TN industrial label printer.

The high-volume thermal label printer delivers efficient labelling solutions with performance you can rely on. With ZPL2 emulation compatability, high ribbon capacity and multiple connectivity options, this durable industrial printer is built for you, and built to last.

Specifications

General

Technology Thermal transfer/Direct thermal
Buttons Power , Feed
LED Power, Status, Error
Memory capacity RAM, FLASH, 128MB, 128MB

Connectivity

Serial Yes
USB interface USB 2.0 Full Speed, USB Host
Wired network interface 10/100 Mbps

Dimensions and weights

Dimensions 248mm (W) x 436mm (D) x 274mm (H)
Weight 9.2

In the box

In the box Quick Setup Guide (QSG), Printer, AC Power supply cord, USB Cable

Operating systems & software

Supported Operating Systems Windows (Windows 8.1, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows), Mac OSX (10,11 or higher ), iOS (Labelling,SupportedOperatingSystems,Mac), Android (5 or higher ), For the full list of compatible operating systems visit support.brother.com, Linux

Printing

Maximum Print Length 11430mm
Maximum Print Speed 7 ips
Resolution 300 x 300dpi
Supported commands FBPL-EZD (EPL2, ZPL2, DPL)

Printing

One Dimensional Barcode Symbology Code128, Interleaved 2 of 5, Code39, EAN13(JAN13), EAN8(JAN8), UPC-A, UPC-E, CODABAR(NW7), MSI, China post, ITF14, Code11, TELEPEN, TELEPEN number, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS, PLESSEY, POSTNET, MSI/Plessey, Industrial 2-of-5, Standard 2-of-5, EAN14
Printing Maximum Media Width 120mm
Maximum Print Lenght 11430mm
Printing Maximum Print Speed 7 ips
Resolution (dpi) 300 x 300dpi
Two Dimensional Barcode Symbology GS1 Databar Composite, MaxiCode, Aztec, PDF417, QR Code, Micro QR Code, CODABLOCK F mode, TLC39
Inner Paper Core Ribbon Length 1 paper core: Max OD 81.3mm
Label Detection Sensor Yes
Printing Maximum Ribbon Width 110mm
Printing Maximum Roll Core Diameter 76.2mm
Printing Maximum Roll Diameter 203mm
Printing Minimum Ribbon Width 40mm
Printing Minimum Roll Core Diameter 25.4mm
Supported commands FBPL-EZD (EPL2, ZPL2, DPL)

Solutions

SDK (Software Development Kit) Yes

Warranty

Warranty 5 years return-to-base


In-built durability

The TJ industrial printer series offers performance you can rely on, even in the toughest production environments. The reliable thermal barcode printer has been built with you in mind and built to last, ensuring you enjoy years of hassle-free label printing.

High quality thermal printing

The TJ-4120TN industrial barcode label printer offers 300 dpi resolution for easy-to-read text and barcodes, time after time. With high quality product, packing and shipping labels, it is easy to maintain compliance throughout the supply chain.


Integrate with ease

With the Brother TJ series, there is no need to worry about integration.

Our industrial printers support various printer command languages, including ZPL2 emulation, making printer replacements as easy as possible - with minimal disruption.


Connectivity as standard

USB, USB Host, Serial and Ethernet are included as standard for the industrial printers. An optional WLAN interface for WiFi connectivity is also available as an accessory to meet your requirements.
5-year-warranty-web Overview.png

Protect your investment with Service Packs

As well as a 5 year return-to-base service included as standard on this product, Brother offers a range of Service Packs to suit your requirements - including onsite
