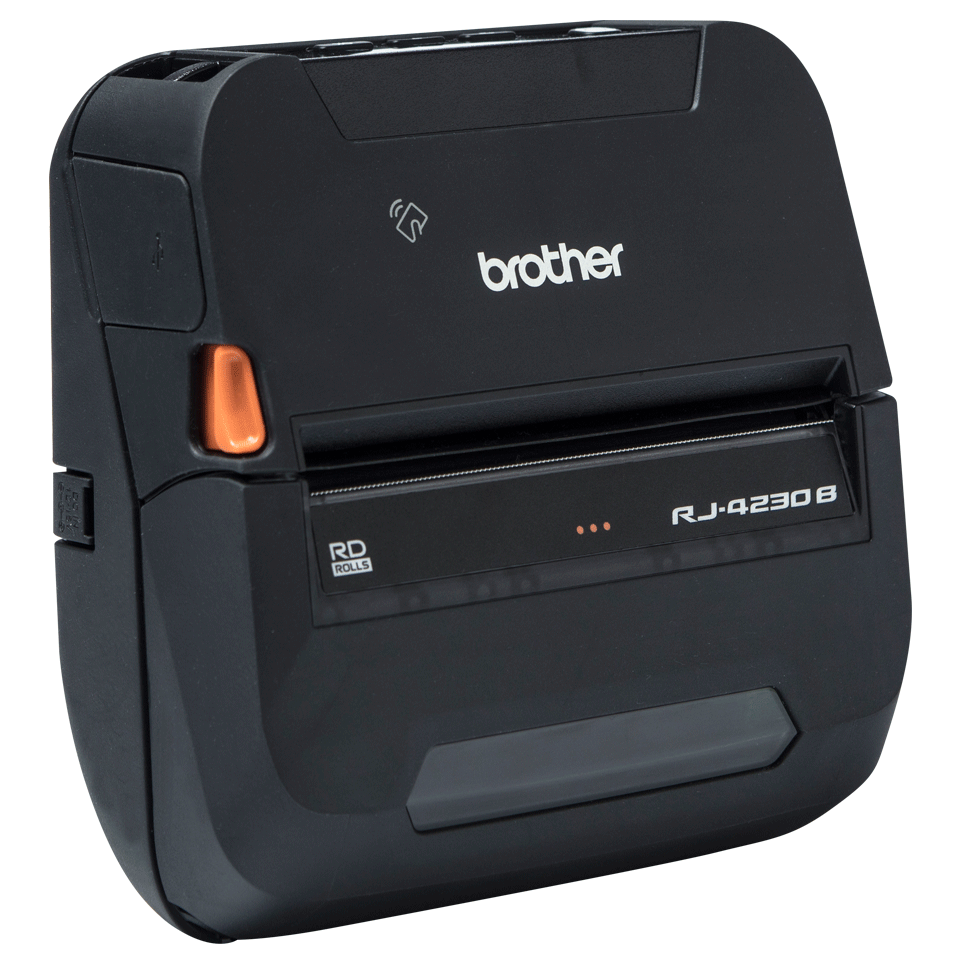

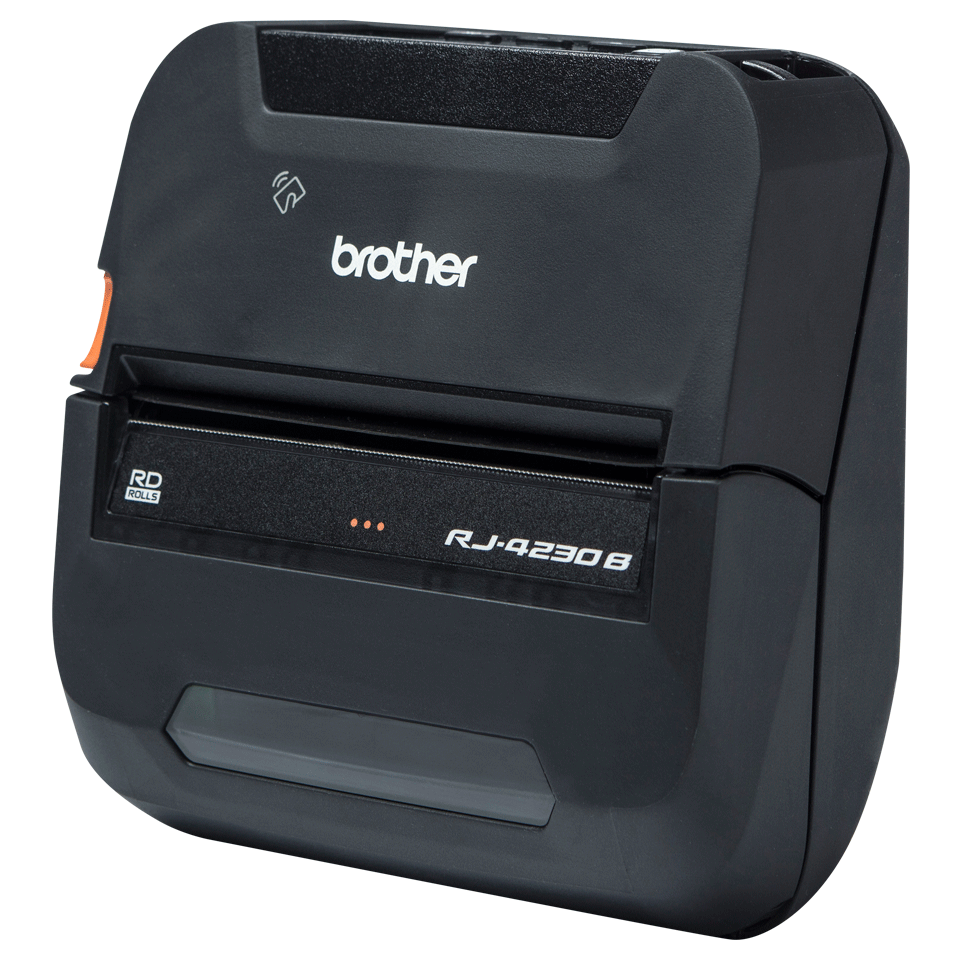

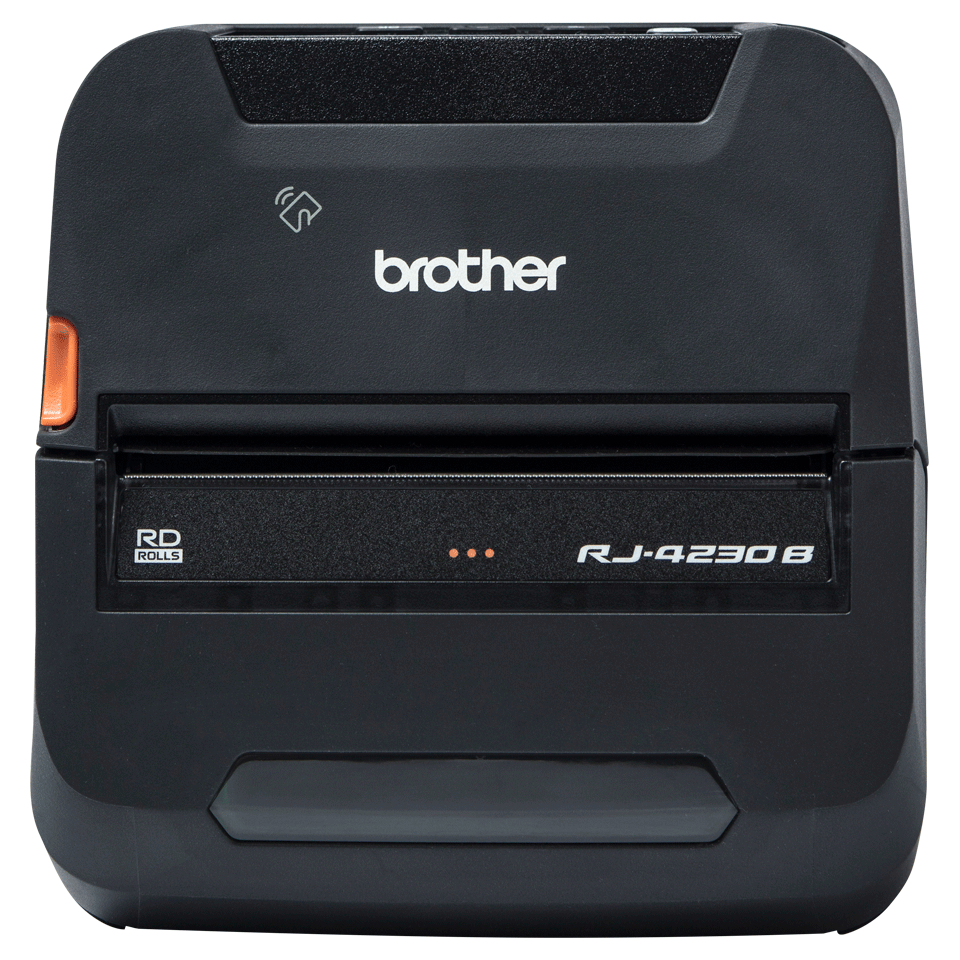

RJ-4230B 4 inch Mobile Printer
Rugged 4 inch mobile label/receipt printer with USB and Bluetooth connectivity.Product Details
- Rugged construction (2.1m drop protection) with reinforced parts and moulded rubber housing engineered for improved toughness (IP54 rated out of the box for dust and moisture exposure).
- Smart Li-ion Battery (option) Industry leading battery life to last a full shift and indicator for health status.
- Fast print speeds of up to 5ips.
- Optional Accessories. Extra batteries, shoulder strap, belt clip, vehicle mount, power options, single battery charger and more.
- Make updates and configurations to the printer in the field, using the new Brother Mobile Deploy app
- Compatibility: Windows®, iOS®, and Android™
Product Overview
Rugged mobile printing – whatever the conditions
The RJ-4230B mobile printer is fast, compact and extremely rugged. It empowers workers to operate in any environment with speed, accuracy and efficiency.
This mobile label and receipt printer raises the industry standard with a smart new way to manage and deploy printers, housing design and market leading technology, performance, ruggedness and connectivity. This fast mobile printing solution is designed to meet the needs of the busy workforce. Print labels, tags, invoices, quotes, receipts, and more on the spot, with convenient Bluetooth connectivity that saves valuable time.
Related Products
-
The BDE-1J152102-058 die-cut label roll, measuring 102mm x 152mm and containing 85 labels per roll has been Certified by Brother International Europe. Each purchase contains 20 rolls per order.£120.00Inc. VAT£100.00Ex. VAT
-
The BDL-7J000058-040 continuous receipt roll, measuring 58mm in width, has been Certified by Brother International Europe. Each purchase contains 24 rolls per order.£72.00Inc. VAT£60.00Ex. VAT
-
The BDL-7J000102-058 continuous receipt roll, measuring 101.6mm in width, has been Certified by Brother International Europe. Each purchase contains 20 rolls per order.£120.00Inc. VAT£100.00Ex. VAT
-
-
-
-
European AC adapter accessory with 2-pin plug for use with RJ or PJ Brother mobile printers.£48.05Inc. VAT£40.04Ex. VAT
-
UK AC adapter accessory with 3-pin plug for use with RJ or PJ Brother mobile printers.£51.18Inc. VAT£42.65Ex. VAT
-
-
-
The Brother PA-BEK-001CG battery eliminator kit with cigarette lighter socket connection.£213.52Inc. VAT£177.93Ex. VAT
-
The Brother PA-BEK-001WR battery eliminator kit with wired connection.£213.52Inc. VAT£177.93Ex. VAT
-
-
-
The Brother PA-LPR-001 Linerless Platen Roller is compatible with RJ-4230B and RJ-4250WB label printers.£84.06Inc. VAT£70.05Ex. VAT
Specifications
General
| Memory | RAM, FLASH, 64MB, 256MB |
| Technology | Direct thermal |
Connectivity
| Bluetooth | Yes (Ver 4.2) |
| Bluetooth Profiles | SPP (Serial Port Profile), OPP (Object Push Profile), HCRP (Hard Copy Cable Replacement Profile), GATT (Bluetooth Low Energy) |
| NFC | Yes |
| USB interface | USB 2.0 Full Speed |
Dimensions and weights
| Dimensions | 153mm (W) x 159mm (D) x 68mm (H) |
| Weight | 0.850 |
In the box
| In the box | Quick Setup Guide (QSG), Belt Clip, Mobile printer |
Operating Environment
| Operating Humidity | 10% - 90% |
| Operating Temperature | 0°C - 40°C |
| Storage Humidity | 10% - 90% |
| Storage Temperature | -20°C - 60°C |
| Sealing | IP54 without case |
Operating systems & software
| Supported Operating Systems | For the full list of compatible operating systems visit support.brother.com |
Printing
| Maximum Print Length | 3000mm |
| Resolution | 203 |
Solutions
| SDK (Software Development Kit) | Yes |
Software Security Updates Guarantee
Brother devices conform to The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023 and receive guaranteed software security updates until at least five years after the device is last in production.
After the initial support period, Brother shall use all reasonable endeavours to provide software updates for as long as reasonably practicable.
If you already own a Brother device, visit support.brother.com for information specific to your device.
Rugged 4" mobile receipt printer with Bluetooth
This direct thermal printer offers the highest speed printing in its class all contained in a compact yet rugged housing. The integrated LCD screen and easy loading rolls make the RJ-4230B the ideal mobile printer for your business.
Mobilise your workforce
Mobile workers within retail, field service/sales, logistics, warehousing, public safety, emergency services and manufacturing can all benefit from being able to leave a receipt upon completion of work or delivery. Empower your mobile workforce with this rugged and compact printer.
Integration into legacy systems
The RJ-4230B incorporates ZPL II and CPCL emulations to offer maximum compatibility with legacy systems. Or design templates on your PC, upload to the memory of the printer and access, update and print these using Brother ESC/P printer language.
Download the datasheet for range specifications
Compare each model's features and benefits by downloading the datasheet for the RJ-2000 series mobile printer range from the downloads tab above.
Designed for tough jobs
The RJ-4230B is tough - and can handle the drops, moisture and dust which it can regularly encounter. With an IP54 rating, and endurance tested for a 2.1 metre drop, it's designed to withstand whatever the environment throws at it.
Bluetooth, NFC and USB connectivity
Ensure seamless connectivity thanks to integrated Bluetooth connectivity. Supports SPP, OPP, BIP, IAP and HRCP profiles. Or use the USB port to connect to your Windows based PC. With added MFI support and NFC connectivity you can quickly integrate into everyday tasks.
SDK's for Android and Windows devices
Easily add printing within your existing apps and software by harnessing the power of one of the Brother SDK's (Software Development Kits) available. Use the Brother B-PAC SDK for Windows based programs, or Brother Print SDK for Android devices. More information can be found at https://atyourside.brother.co.uk/developer-centre
