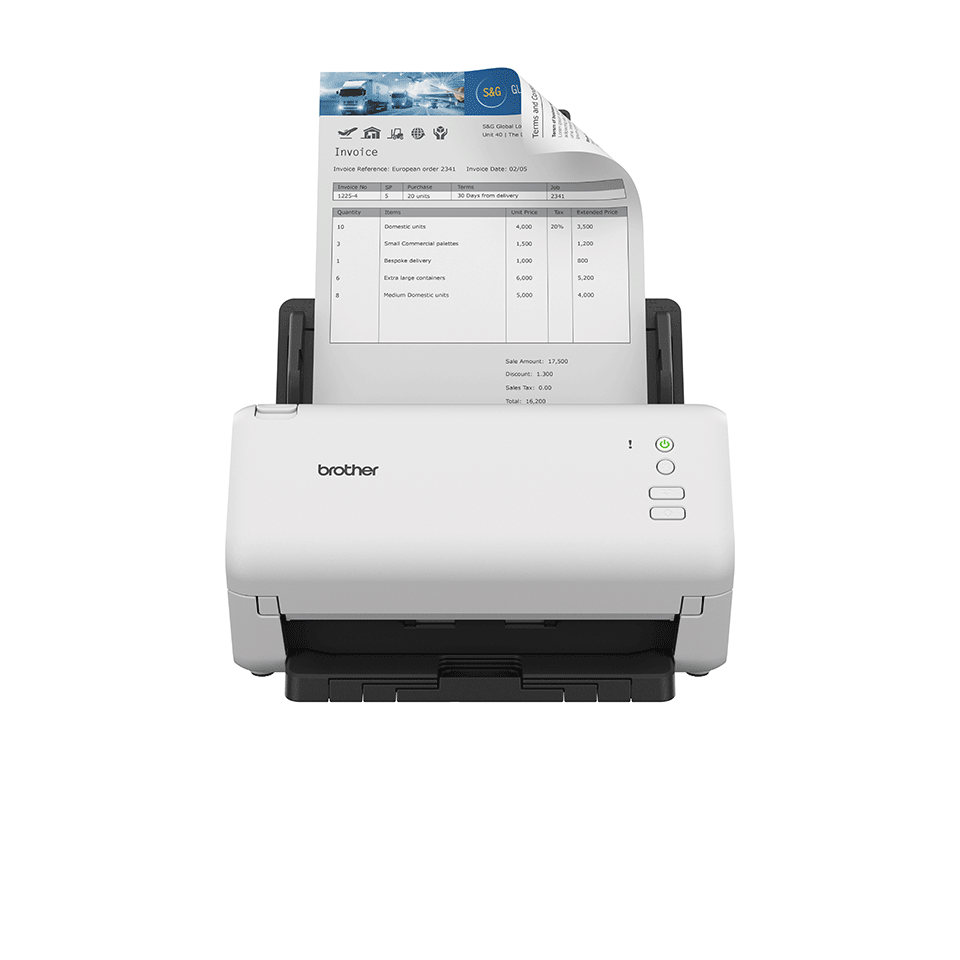

ADS-4100 facing forward with document

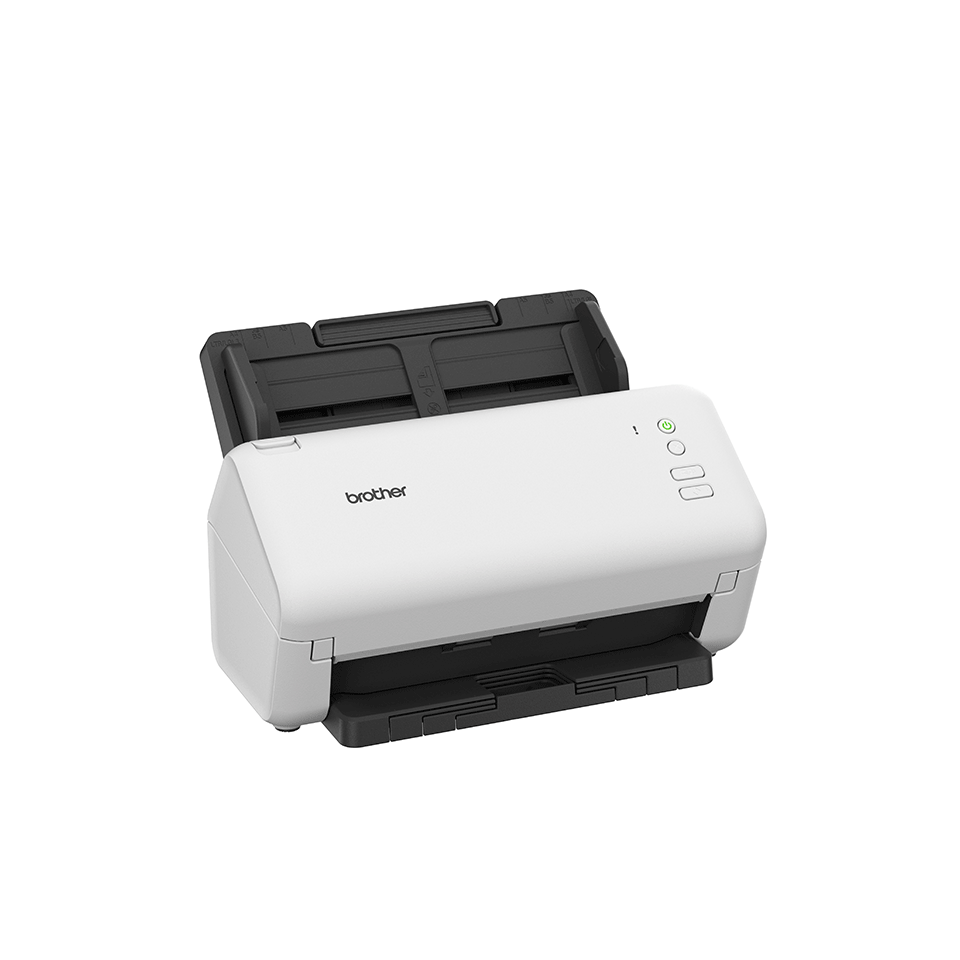

ADS-4100 facing left

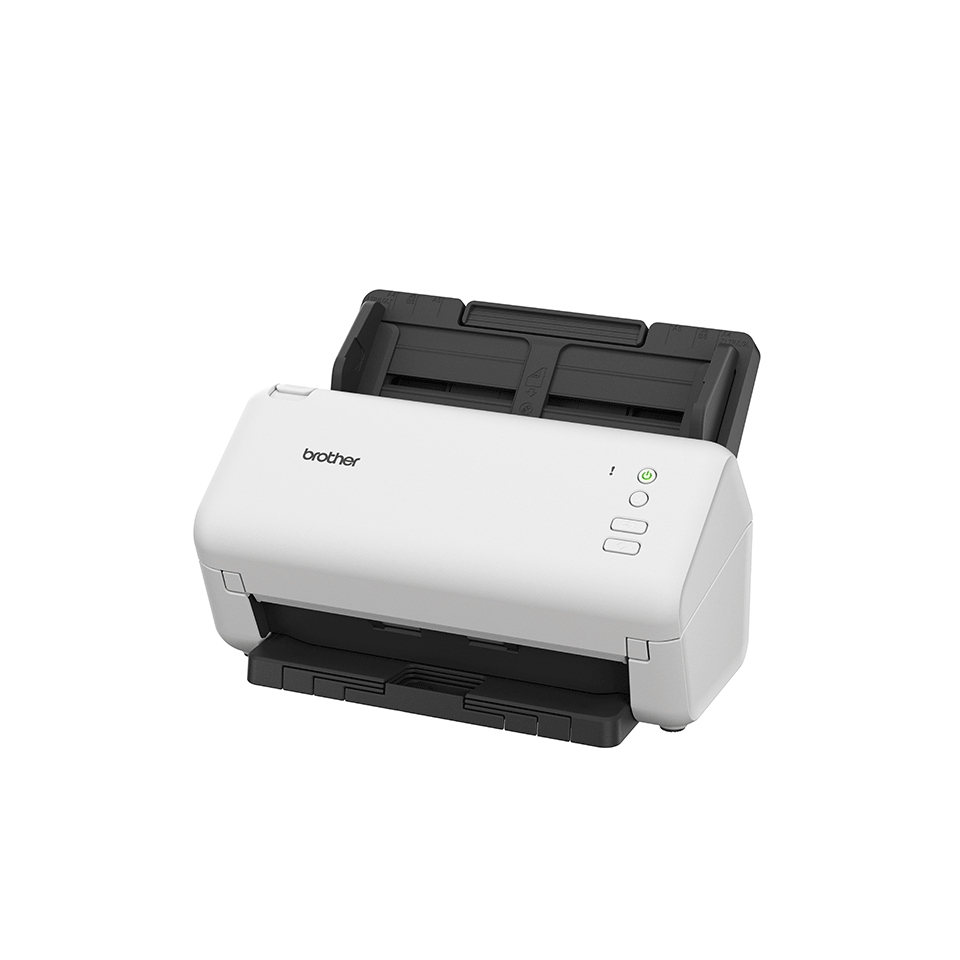

ADS-4100 facing right

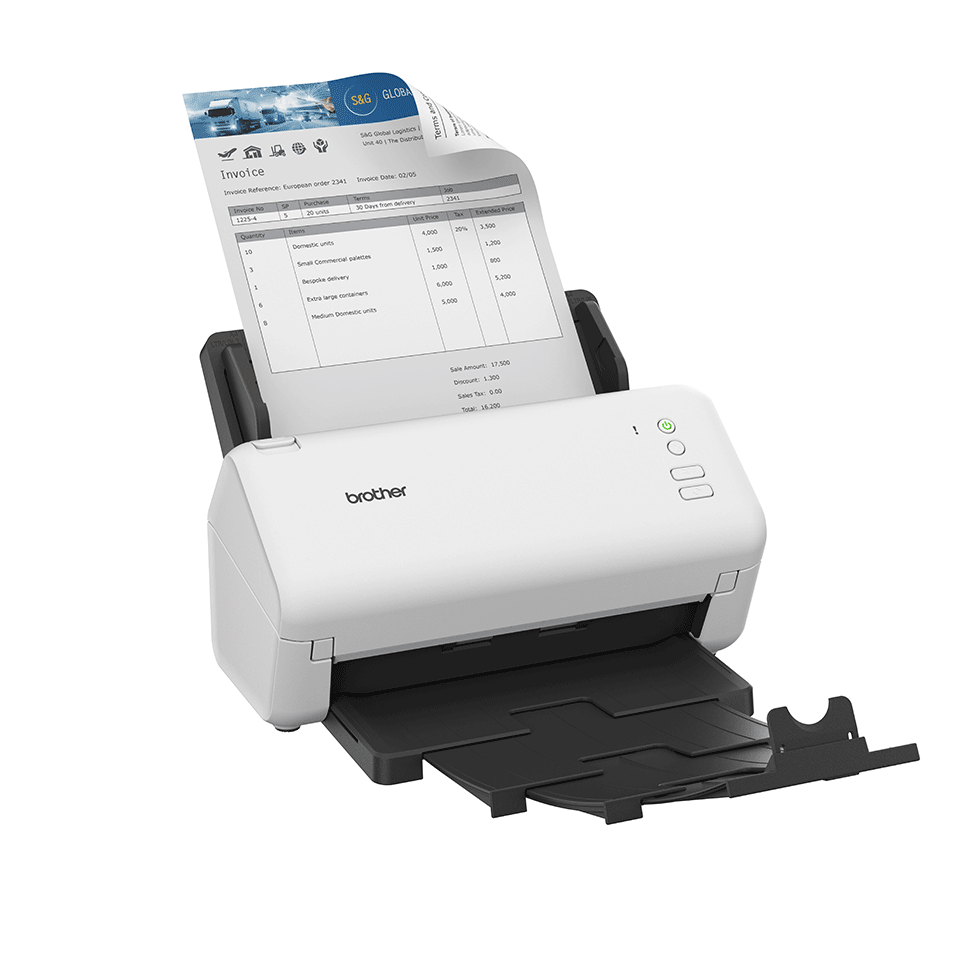

ADS-4100 facing right with document, paper tray pulled out

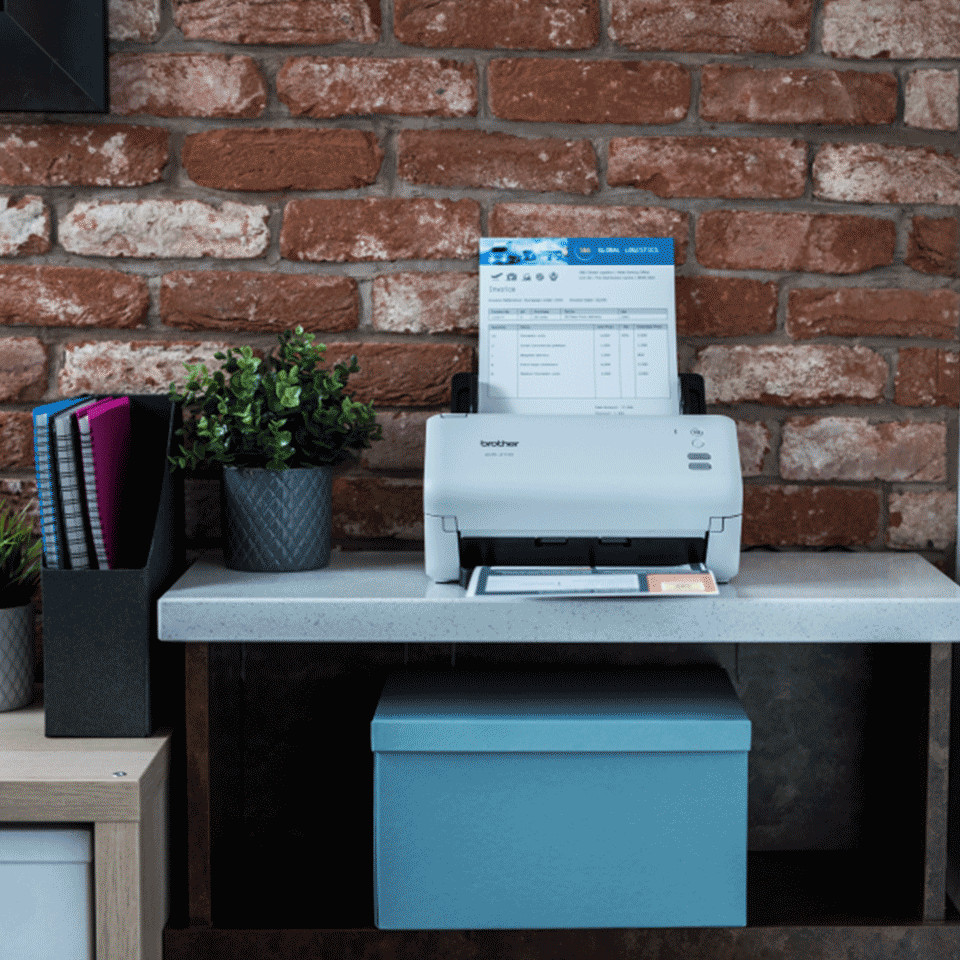

ADS-4100 on desk against brick wall, plant, folders, boxes
Man sat holding laptop, ADS-4100 on desk, plants, folders, notebooks, boxes

ADS-4100 Desktop document scanner

With simplicity built in. Robust, easy-to-use, every day scanner. Great for digitsing a range of media at home or in the office.

Inc. VAT

Ex. VAT

Inc. VAT

Ex. VAT

Product Details

  • Scan up to 35 pages per minute

  • 2-sided scan up to 35 pages per minute

  • 60 sheet Automatic Document Feeder (ADF)

  • SuperSpeed USB3.0

  • Scan directly to USB host

  • Brother ScanEssentials Lite software

ADS-4100 facing forward with document

Product Overview

Simple and intuitive. This highly versatile scanner is ideal for businesses that need to digitise a wide range of media, from paper to plastic cards, whether at home or in the office.

  • Advanced image processing
  • Driver compatibility with TWAIN (Win and macOS), WIA, ICA, Linux SANE

Specifications

General

Function Scan
Control Panel Keys
Display No
Backup Clock Up to 24 hours
Form Factor Desktop
Scanner type Dual CIS (Contact Image Sensor), LED Array Light Source

Scanning

2-Sided scan Yes
One Sided Scan Speed A4 Mono (3) 35 (pages per minute)
One Sided Scan Speed A4 Colour (3) 35 (pages per minute)
Two Sided Scan Speed A4 Mono (3) 70 (images per minute)
Two Sided Scan Speed A4 Colour (3) 70 (images per minute)
Resolution Optical (600 x 600dpi), Interpolated (1200 x 1200dpi)
Colour Depth Output (24 bit Colour Processing), Input, 48 bit Colour Processing
Form Factor Desktop

Media specifications

Automatic Document Feeder 60
Media Sizes Direct Paper Path (Width 50.8 - 215.9mm), Long Paper 5000mm, Height 50.8 - 355.6mm
Media Types Plastic Card, Plain Paper, Thicker Paper, Thin Paper, Recycled Paper, Business Card, Thick Paper
Paper Weight 40 - 200gsm
Paper Thickness 0.08 ~ 0.28mm
Plastic Card Size Length (ISO) (85.60mm), Width (ISO) (53.98mm)
Plastic Card Thickness Up to 1.32mm

Scanner functions

File Format Support PDF, TIFF, JPEG
Standard Functions Scan to (PC, Image)
Direct Scan Yes

Drivers

Scan Drivers Linux ( SANE), Windows (Windows 11, Windows 10, TWAIN, WIA, Windows 8.1, Windows Server 2019, 2016, 2012R2, 2012 & 2008R2), Macintosh ( TWAIN, 10.14.x, ICA, macOS), Visit support,brother,com for the full list of supported OS and to download the latest drivers and software,

Fleet Management Tools

Software supplied - Windows Windows Software (Brother iPrint&Scan, Tungsten PaperPort, Kofax Power PDF Standard v3, Remote Setup, NewSoft Presto! Bizcard 6, Brother ScanEssentials Lite, Image Folio), Macintosh Software (Brother iPrint&Scan Desktop, Remote Setup, NewSoft Presto! Bizcard 7, Image Folio), Utilities, Easy Setup

Supplies And Accessories

Optional accessories Roller Kit (Roller Kit PRK-A3001 ADS-4100, ADS-4300N, ADS-4500W, ADS-4700W), A3 Carrier Sheet

Carton Contents

Carton Contents Detachable ADF, Power supply cord, AC adapter, USB cable, Quick setup guide, Product safety guide, Warranty, Device

Dimensions And Weights

Dimensions With Carton 391mm (W) x 243mm (D) x 320mm (H)
Dimensions Without Carton 299.5mm (W) x 215.9mm (D) x 190.5mm (H)

Operating Environment

Power Requirement AC (100-240V AC 50/60Hz), DC (24V, 1.9A)
Sound Power Scanning (<59dB)
Operating Humidity % (20 - 80%), Degrees Celsius (5°C - 35°C), Degrees Fahrenheit (41°F - 95°F)
Storage Humidity % (10 - 90%), Degrees Сelsius (-20°C - 60°C), Degrees Fahrenheit ( -4°F - 140°F)
Wake Up Time USB connected, approx 1 second from sleep mode

Connectivity

Local interface USB 2.0 Host (Rear), Super Speed micro USB 3.0 Type B

Security Features

Security Features Kensington Lock, Firmware Updates

Energy Consumption

Power Saving Modes Sleep, Power Down

Caveats

  • [3] Scan Speeds based on ISO/IEC 17991
New Tab

Software Security Updates Guarantee

Brother devices conform to The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023 and receive guaranteed software security updates until at least five years after the device is last in production.

After the initial support period, Brother shall use all reasonable endeavours to provide software updates for as long as reasonably practicable.

If you already own a Brother device, visit support.brother.com for information specific to your device.


Advanced connectivity

With USB3.0 and USB host, you can securely scan documents without the need for a PC.


Simple and intuitive

Design simplicity means it's easy to set up and easy to use.


Brother ScanEssentials Lite

Our ScanEssentials Lite software enables you to scan documents easily, create simple workflows and save them securely to folders on your network, with minimum effort.


Fast and reliable

With high-quality and robust roller mechanisms, the ADS-4100 has a large 60 sheet ADF capacity and can scan up to 35 pages per minute.


Advanced image capture and processing

Effortless and impressive image capture and processing - from easily referencing and locating scanned pages with the digital imprinter, to optimising image quality through the automatic vertical streaks and moiré reduction tools.


Industry recognised software

Increase post-scanning productivity with industry recognised software including Kofax and Newsoft, available as standard with device.
