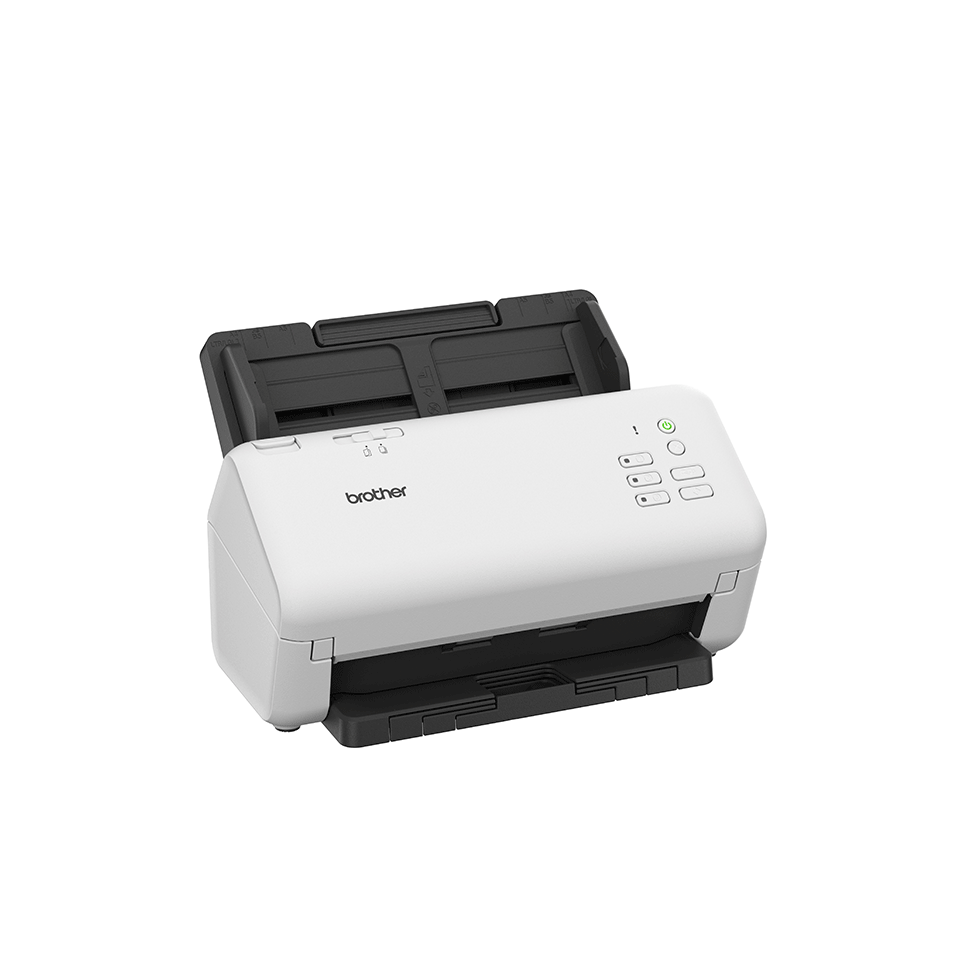

ADS-4300N facing left

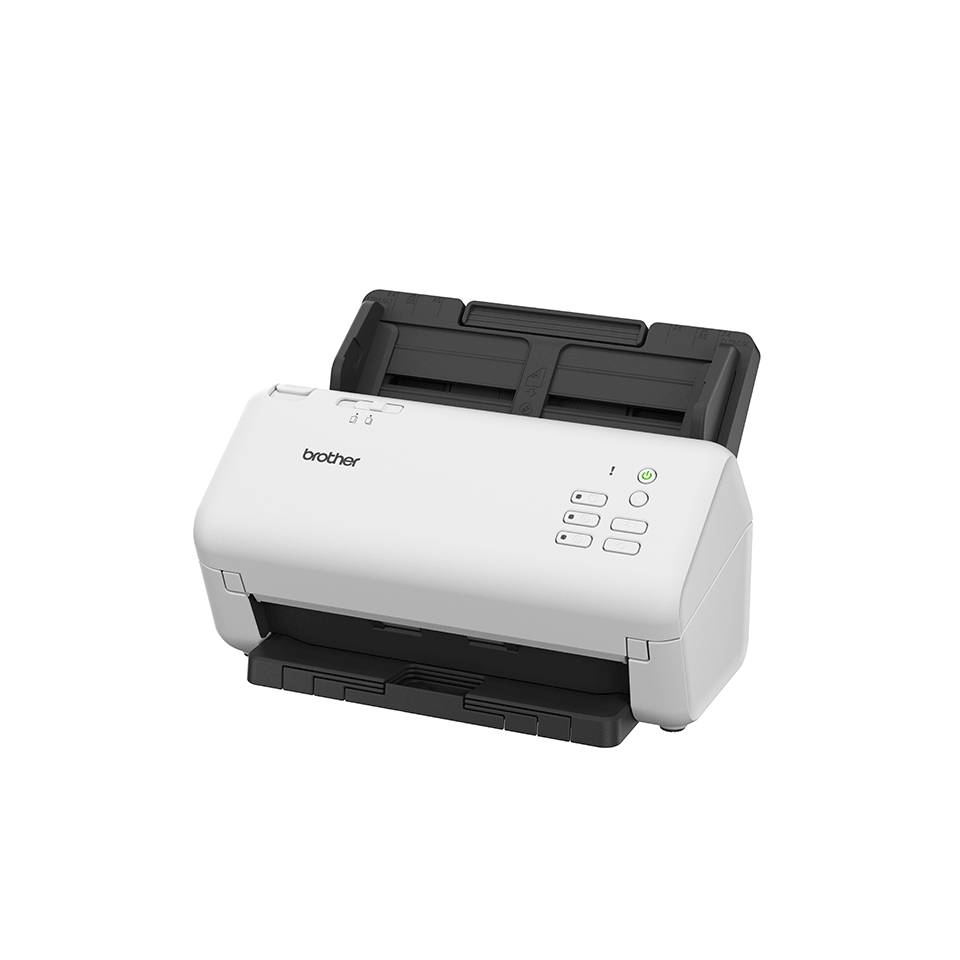

ADS-4300N facing right

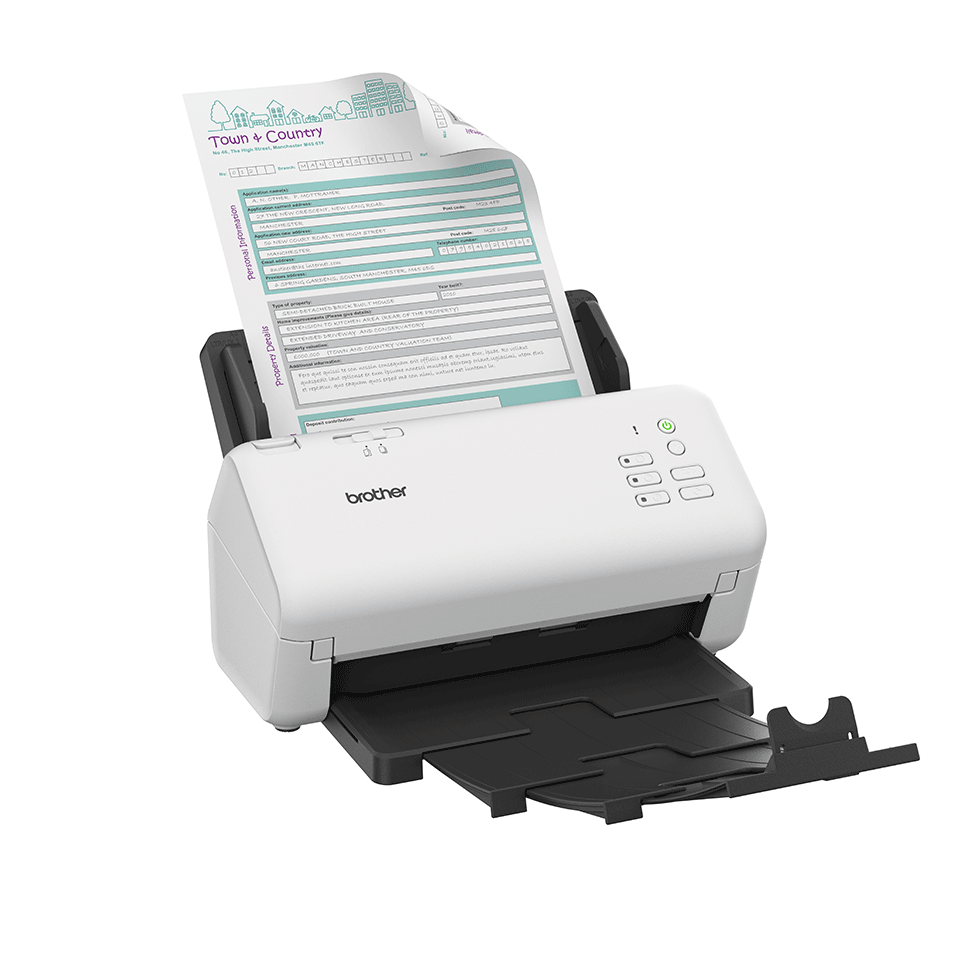

ADS-4300N with document facing right, paper tray pulled out
ADS-4300N on desk with document, brick wall
Female stood next to scanner holding document in ADS-4300N, books, shelving

ADS-4300N Network desktop scanner

With high-speed wired connectivity. Great choice for scanning documents to the network and collaborating with colleagues. Ideal for shared use in the office.

Inc. VAT

Ex. VAT

Inc. VAT

Ex. VAT

Product Details

  • Scan up to 40 pages per minute
  • 2-sided scan up to 40 pages per minute
  • 80 sheet Automatic Document Feeder (ADF)
  • Wired connectivity
  • SuperSpeed USB3.0
  • Scan directly to USB host
ADS-4300N facing forward with document

Product Overview

Designed for businesses needing a high-speed, efficient network scanner. Connect your ADS-4300N to your network and effortlessly capture your documents to share and collaborate with colleagues.


  • 3 configurable hot keys
  • Advanced image processing and batch scanning
  • Features Ultrasonic Multifeed Sensor, Separation Switch
  • Brother Mobile Connect app
  • Supports AirPrint Scan
  • Includes Brother ScanEssentials software
  • Driver compatibility with TWAIN (Win and macOS), WIA, Linux SANE

Specifications

General

Function Scan
Control Panel Keys
Display No
Battery No
Backup Clock Up to 24 hours
Form Factor Desktop
Scanner type Dual CIS (Contact Image Sensor), LED Array Light Source

Scanning

2-Sided scan Yes
One Sided Scan Speed A4 Mono 40 (pages per minute)
One Sided Scan Speed A4 Colour 40 (pages per minute)
Two Sided Scan Speed A4 Mono 80 (images per minute)
Two Sided Scan Speed A4 Colour 80 (images per minute)
Resolution Optical (600 x 600dpi), Interpolated
Colour Depth 24 bit Colour Processing, Output, Input, 48 bit Colour Processing
Form Factor Desktop
Mobile Scan Yes

Media specifications

Automatic Document Feeder 80
Media Sizes Direct Paper Path (Width 50.8 - 215.9mm), Height 50.8 - 355.6mm, Long Paper 5000mm
Media Types Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Business Card, Plastic Card
Paper Weight 40 - 200gsm
Paper Thickness 0.08 ~ 0.28mm
Plastic Card Size Length (ISO) (85.60mm), Width (ISO) (53.98mm)
Plastic Card Thickness Up to 1.32mm

Scanner functions

File Format Support JPEG, PDF, TIFF
Standard Functions Scan to (PC, Image, FTP, File, Network, Network Folder, SFTP, USB)
Scan Profiles 25 Preset network
Direct Scan Yes
Feed Control Ultra Sonic Multi Feed Sensor, Separation Switch

Drivers

Scan Drivers Linux ( SANE), Macintosh ( AirPrint Scanning, TWAIN, 10.14.x, macOS), Windows (Windows 11, Windows 10, TWAIN, WIA, Windows 8.1, Windows Server 2019, 2016, 2012R2, 2012 & 2008R2, ISIS), Visit support,brother,com for the full list of supported OS and to download the latest drivers and software,

Fleet Management Tools

Fleet Management Tools LAN/WAN Management Software (BRAdmin Light, BRAdmin Professional), Embedded Web Server
Software supplied - Windows Windows Software (Brother iPrint&Scan, Kofax PaperPort, Kofax Power PDF Standard v3, Remote Setup, NewSoft Presto! Bizcard 6, Brother ScanEssentials), Macintosh Software (Brother iPrint&Scan Desktop, Remote Setup, NewSoft Presto! Bizcard 7, Image Folio), Utilities, Easy Setup

In the box

Others Device, Power supply cord, Quick setup guide, Product safety guide, Warranty, Detachable ADF, AC adapter, USB cable

Network

Wired Network Security SSL/TLS (IPPS, HTTPS), 802,1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), SMTP-AUTH, SNMP v3

Supplies And Accessories

Optional accessories Roller Kit (Roller Kit PRK-A3001 ADS-4100, ADS-4300N, ADS-4500W, ADS-4700W), A3 Carrier Sheet

Carton Contents

Carton Contents Device, Power supply cord, Quick setup guide, Product safety guide, Warranty, Detachable ADF, AC adapter, USB cable

Dimensions And Weights

Dimensions With Carton 391mm (W) x 243mm (D) x 320mm (H)
Dimensions Without Carton 299.5mm (W) x 215.9mm (D) x 190.5mm (H)

Operating Environment

Power Requirement AC (100-240V AC 50/60Hz), DC (24V, 1.9A)
Sound Power Scanning (<59dB)
Operating Humidity % (20 - 80%), Degrees Celsius (5°C - 35°C), Degrees Fahrenheit (41°F - 95°F)
Storage Humidity % (10 - 90%), Degrees Сelsius (-20°C - 60°C), Degrees Fahrenheit ( -4°F - 140°F)
Power Saving Modes Sleep, Power Down, Auto power on after power outage
Wake Up Time USB connected, approx 1 second from sleep mode

Connectivity

Local interface USB 2.0 Host (Rear), Super Speed micro USB 3.0 Type B
Wired Interface 10BaseT/100BaseTX
WiFiDirectTM No
Wired Network Security SSL/TLS (IPPS, HTTPS), 802,1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), SMTP-AUTH, SNMP v3

Security Features

Security Features Firmware Updates, Port-based Network Access Control (IEEE 802,1x), Kensington Lock
IPv4 DHCP, APIPA (AutoIP), WINS/NetBIOS name resolution, DNSResolver, LLMNR responder, SNMPv1/v2c/v3, ICMP, Web Services (Scan), SNTPClient, LDAP, mDNS, HTTP/HTTPS Server, HTTP Server
IPv6 RA, DNS Resolver, mDNS, LLMNR responder, HTTP/HTTPS Server, ICMPv6, SNTP Client, Web Services(Scan), HTTP Server
IP Filter Yes

Mobile Connectivity

Mobile and Web Connectivity Brother Mobile Connect (Android, iPad / iPhone)

Energy Consumption

Power Saving Modes Sleep, Power Down, Auto power on after power outage
Power Saving Modes Scanning (<59dB)
New Tab

Software Security Updates Guarantee

Brother devices conform to The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023 and receive guaranteed software security updates until at least five years after the device is last in production.

After the initial support period, Brother shall use all reasonable endeavours to provide software updates for as long as reasonably practicable.

If you already own a Brother device, visit support.brother.com for information specific to your device.


Simple and intuitive

Design simplicity means it's easy to set up and easy to use.


Brother ScanEssentials

Our ScanEssentials software provides you with additional features which you can tailor to your business. For added security, you can set up passwords and protect your workflows, with the option to save your documents in a variety of formats.

The metadata function can also read barcodes or specific strings of text to easily facilitate the separation and file naming of documents.


Fast and reliable

With an in-built ultrasonic multifeed to eliminate misfeeds, the ADS-4300N has a large 80 sheet ADF capacity and rapidly scans up to 40 pages per minute. The separation switch enables very thick and thin documents, plastic cards and crumpled paper to smoothly feed through with ease.


Advanced image capture and processing

Effortless and impressive image capture and processing - from easily referencing and locating scanned pages with the digital imprinter, to optimising image quality through the automatic vertical streaks and moiré reduction tools.

The document separation functionality also automatically detects and removes any scanned blank pages, thus reducing file sizes and document preparation time.


Industry recognised software

Increase post-scanning productivity with industry recognised software including Kofax and Newsoft, available as standard with device.


Advanced connectivity

With USB3.0 and USB host, you can securely scan documents without the need for a PC.
