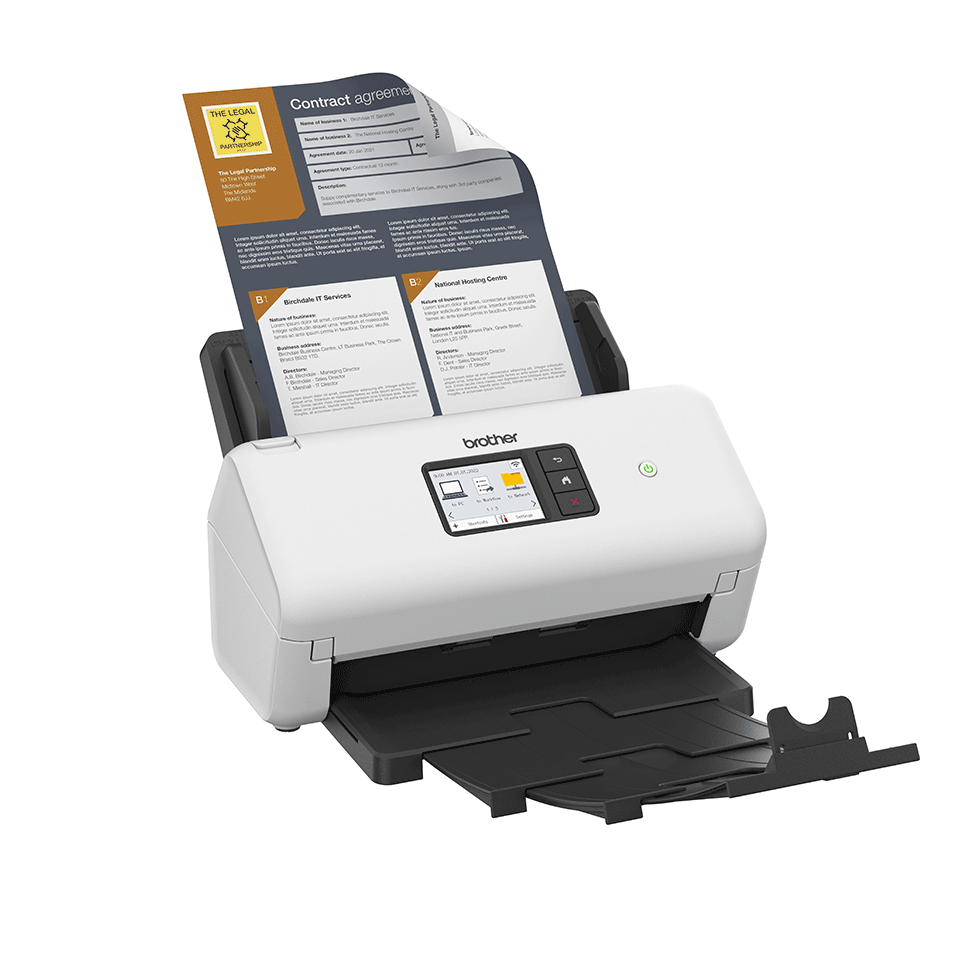

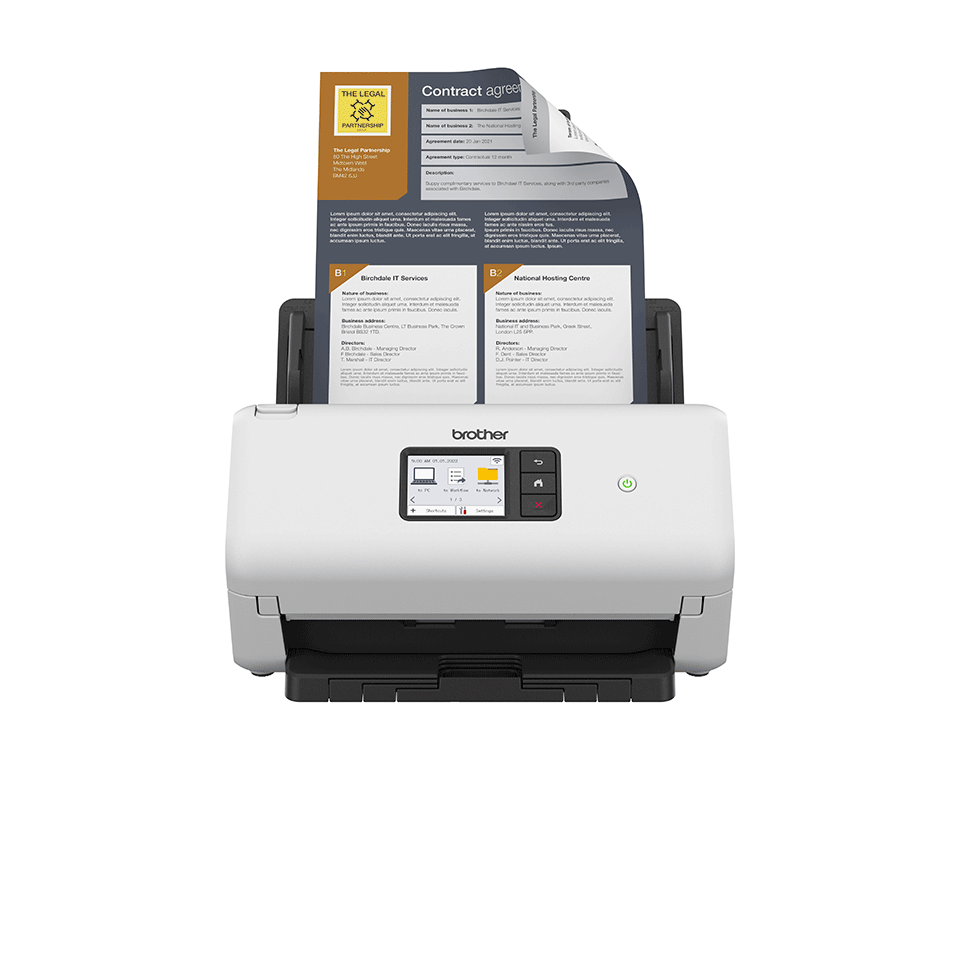

ADS-4500W facing forward with document

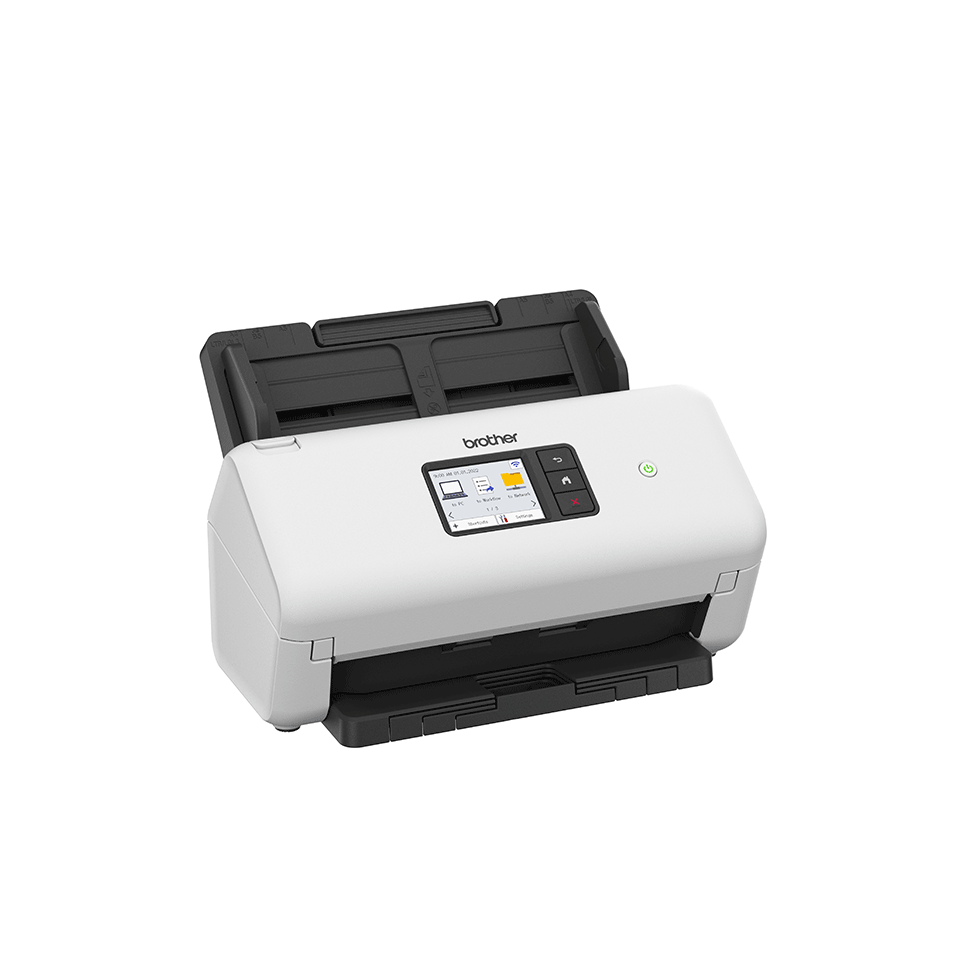

ADS-4500W facing left
ADS-4500W facing right
ADS-4500W facing right with output, paper tray pulled out

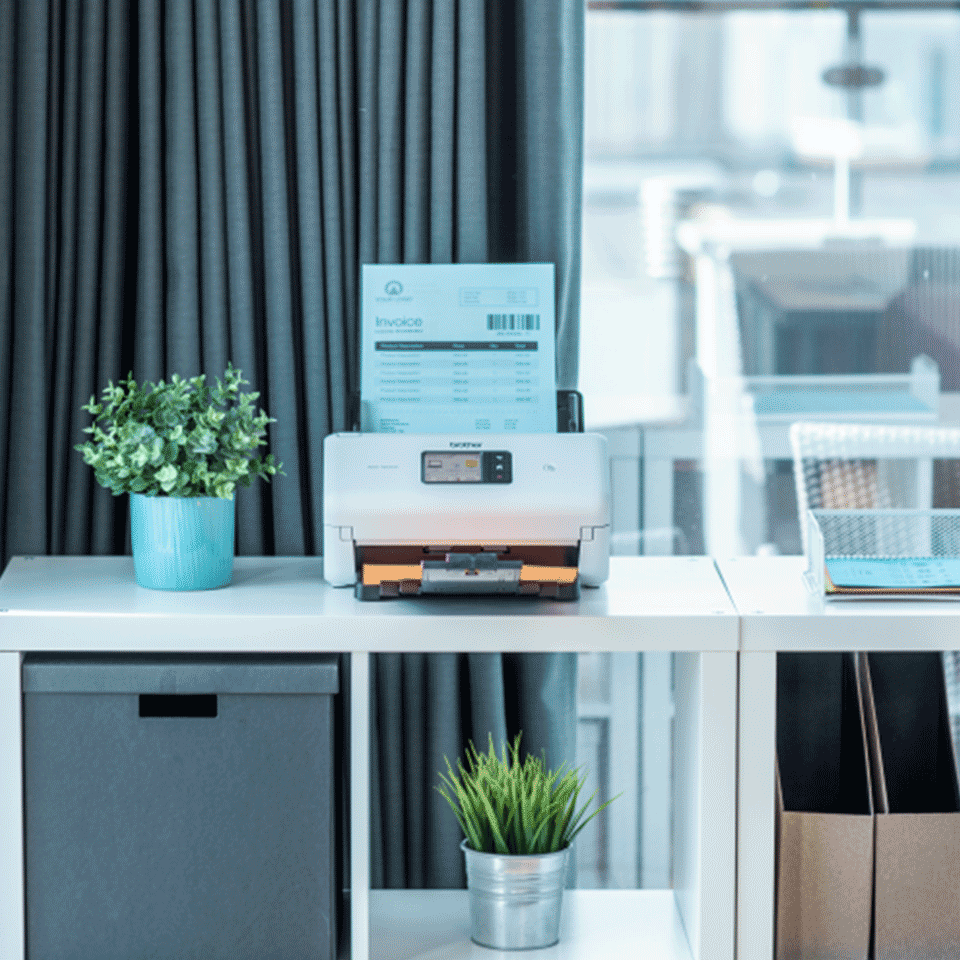

ADS-4500W on white cabinet, plants, boxes, document holders
Female stood holding document next to ADS-4500W, cabinet, glass, plant

ADS-4500W Desktop document scanner

With fast wired and wireless connectivity. Create shortcuts and simple workflows with the easy-to-use touchscreen. Ideal for scanning at home or in the office.

Inc. VAT

Ex. VAT

Inc. VAT

Ex. VAT

Product Details

  • Scan up to 35 pages per minute
  • 2-sided scan up to 35 pages per minute
  • 60 sheet Automatic Document Feeder (ADF)
  • Wireless and wired connectivity
  • Scan directly to USB host
  • Intuitive 7.1cm touchscreen
ADS-4500W facing forward with document

Product Overview

Simple and intuitive, offering a user-friendly touch screen combined with the option of wired and wireless connectivity. The ideal choice for shared use in an office or at home.


  • 20 configurable shortcuts
  • Brother Mobile Connect app
  • Support AirPrint Scan
  • Advanced image processing
  • Driver compatibility with TWAIN (Win and macOS), WIA, ICA, Linux SANE

Specifications

General

Function Scan
Control Panel Touchscreen
Display No (7.1cm Colour Touchscreen)
Backup Clock Up to 24 hours
Form Factor Desktop
Scanner type Dual CIS (Contact Image Sensor), LED Array Light Source

Scanning

2-Sided scan Yes
One Sided Scan Speed A4 Mono 35 (pages per minute)
One Sided Scan Speed A4 Colour 35 (pages per minute)
Two Sided Scan Speed A4 Mono 70 (images per minute)
Two Sided Scan Speed A4 Colour 70 (images per minute)
Resolution Optical (600 x 600dpi), Interpolated
Colour Depth 24 bit Colour Processing, Output, Input, 48 bit Colour Processing
Form Factor Desktop
Wireless Scanning Yes
Mobile Scan Yes

Media specifications

Automatic Document Feeder 60
Media Types Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Business Card, Plastic Card
Paper Weight 40 - 200gsm
Plastic Card Size Length (ISO) (85.60mm), Width (ISO) (53.98mm)
Plastic Card Thickness Up to 1.32mm

Scanner functions

File Format Support JPEG, PDF, TIFF
Standard Functions Scan to (Image, FTP, Email Server, File, Network, PC, Network Folder, SFTP, USB, Workflow)
Scan Profiles 25 Preset network
Direct Scan Yes
Feed Control Auto Start Scan

Drivers

Scan Drivers Linux ( SANE), Macintosh ( AirPrint Scanning, TWAIN, 10.14.x, macOS), Windows (Windows 10, TWAIN, WIA, Windows 7, Windows 8, Windows Server 2019, 2016, 2012R2, 2012), Visit support,brother,com for the full list of supported OS and to download the latest drivers and software,

Fleet Management Tools

Fleet Management Tools LAN/WAN Management Software (BRAdmin Professional, BRAdmin Light), Embedded Web Server
Software supplied - Windows Windows Software (Brother iPrint&Scan, Kofax PaperPort, Kofax Power PDF Standard v3, Remote Setup, NewSoft Presto! Bizcard 6, Brother ScanEssentials Lite), Macintosh Software (Brother iPrint&Scan Desktop, Remote Setup, NewSoft Presto! Bizcard 7, Image Folio), Utilities, Easy Setup

In the box

Others Device, Power supply cord, Quick setup guide, Product safety guide, Warranty, Detachable ADF, AC adapter, USB cable

Network

Wireless network security SSL/TLS (HTTPS, SMTP), WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES) *Wi-Fi Direct supports WPA2-PSK (AES) only, SMTP-AUTH
Wired Network Security SSL/TLS (HTTPS, SMTP), 802,1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), SMTP-AUTH, SNMP v3

Supplies And Accessories

Optional accessories Roller Kit (Roller Kit PRK-A3001 ADS-4100, ADS-4300N, ADS-4500W, ADS-4700W), A3 Carrier Sheet

Carton Contents

Carton Contents Device, Power supply cord, Quick setup guide, Product safety guide, Warranty, Detachable ADF, AC adapter, USB cable

Dimensions And Weights

Dimensions With Carton 391mm (W) x 243mm (D) x 320mm (H)
Dimensions Without Carton 299.5mm (W) x 215.9mm (D) x 190.5mm (H)

Operating Environment

Power Requirement AC (100-240V AC 50/60Hz), DC (24V, 1.9A)
Sound Power Scanning (<59dB)
Operating Humidity % (20 - 80%), Degrees Celsius (5°C - 35°C), Degrees Fahrenheit (41°F - 95°F)
Storage Humidity % (10 - 90%), Degrees Сelsius (-20°C - 60°C), Degrees Fahrenheit ( -4°F - 140°F)
Power Saving Modes Sleep, Power Down
Wake Up Time USB connected, approx 1 second from sleep mode

Certification

WiFi Certified Wi-Fi Direct, Wi-Fi Protected Setup™, WPA3™ Personal, WPA3™ Enterprise

Address Book

Address Book Speed Dials, Group Send

Connectivity

Local interface SuperSpeed USB 3.0
Wireless network interface 2.4GHz: IEEE 802.11b/g/n (InfrastructureMode)
Wired Interface 10BaseT/100BaseTX
Wireless Setup Support Yes
WiFi Direct Yes
WiFiDirectTM Yes
Wired Network Security SSL/TLS (HTTPS, SMTP), 802,1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), SMTP-AUTH, SNMP v3
Wireless Network Security SSL/TLS (HTTPS, SMTP), WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES) *Wi-Fi Direct supports WPA2-PSK (AES) only, SMTP-AUTH

Security Features

Security Features E-mail Notifications, E-mail Reports, Firmware Updates, Secure Function Lock 3.0, Setting Lock, Port-based Network Access Control (IEEE 802,1x), Kensington Lock
IPv4 DHCP, APIPA (AutoIP), WINS/NetBIOS name resolution, DNSResolver, LLMNR responder, SNMPv1/v2c/v3, ICMP, Web Services (Scan), SNTPClient, LDAP, mDNS, HTTP/HTTPS Server, HTTP Server
IPv6 RA, DNS Resolver, mDNS, LLMNR responder, HTTP/HTTPS Server, ICMPv6, SNTP Client, LDAP, Web Services(Scan), HTTP Server
IP Filter Yes

Mobile Connectivity

Mobile and Web Connectivity Brother Mobile Connect (Android, iPad / iPhone), Scan to Workflow

Energy Consumption

Power Saving Modes Sleep, Power Down
Power Saving Modes Scanning (<59dB)
New Tab

Software Security Updates Guarantee

Brother devices conform to The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023 and receive guaranteed software security updates until at least five years after the device is last in production.

After the initial support period, Brother shall use all reasonable endeavours to provide software updates for as long as reasonably practicable.

If you already own a Brother device, visit support.brother.com for information specific to your device.


Simple and intuitive

Simple to set up with the easy-to-use touch screen.


Brother ScanEssentials Lite

Our ScanEssentials Lite software enables you to scan documents easily, create simple workflows and save them securely to folders on your network, with minimum effort.


Advanced connectivity

With USB3.0, USB host, network and wireless connectivity, you can securely scan documents and share with colleagues.


Fast and reliable

With high-quality and robust roller mechanisms, the ADS-4500W has a large 60 sheet ADF capacity and can scan up to 35 pages per minute.


Advanced image capture and processing

Effortless and impressive image capture and processing - from easily referencing and locating scanned pages with the digital imprinter, to optimising image quality through the automatic vertical streaks and moiré reduction tools.


Industry recognised software

Increase post-scanning productivity with industry recognised software including Kofax and Newsoft, available as standard with device.
