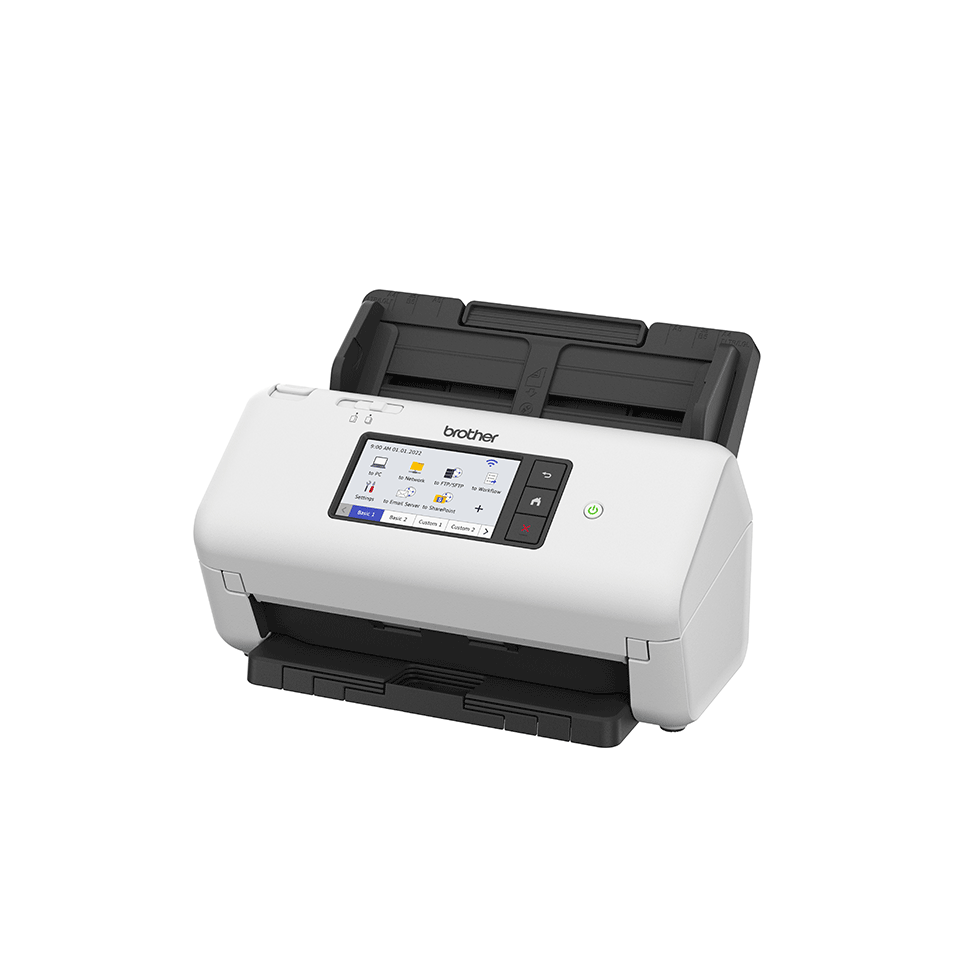

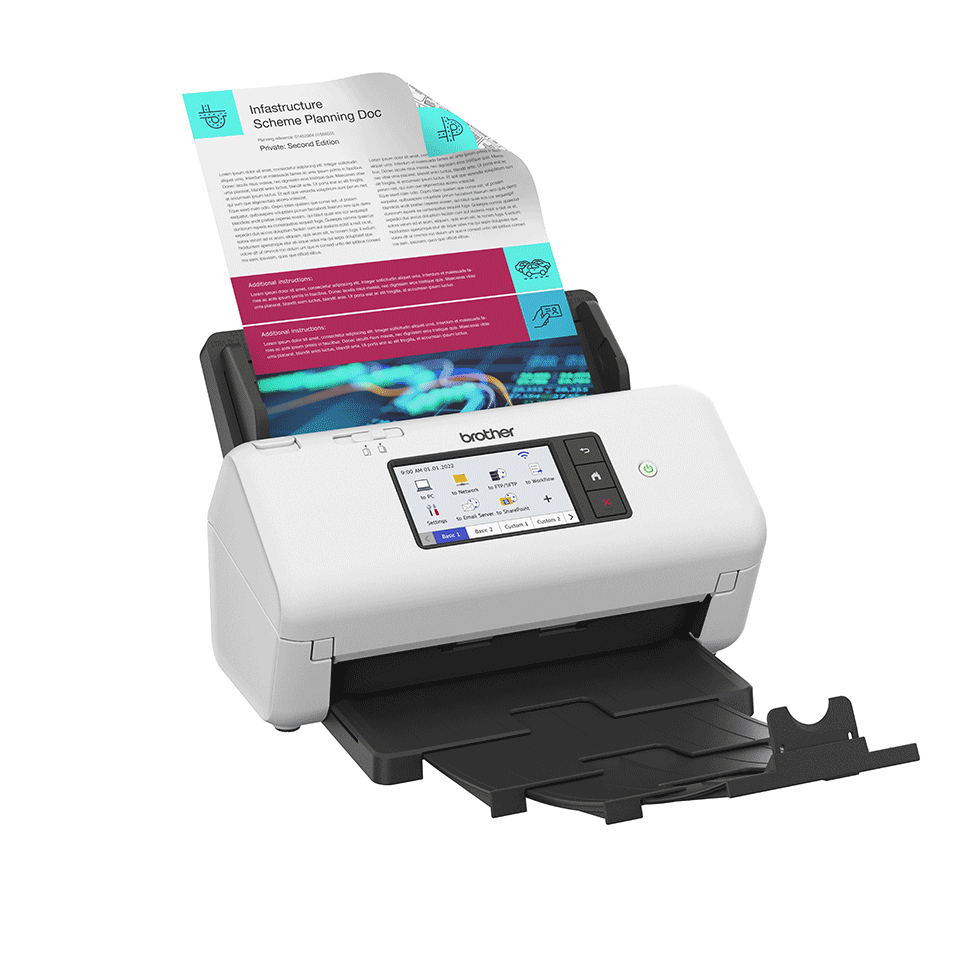

ADS-4700W Desktop document scanner
With high-speed wired and wireless connectivity and dedicated user touchscreen. Ideal for complex workflows and sharing documents with colleagues.Inc. VAT
Ex. VAT
Inc. VAT
Ex. VAT
Product Details
- Scan up to 40 pages per minute
- 2-sided scan up to 40 pages per minute
- 80 sheet Automatic Document Feeder (ADF)
- Wireless and wired connectivity
- SuperSpeed USB3.0
- Scan directly to USB host
Product Overview
Designed to enable businesses to simplify complex workflow or operational processes. Securely capture your documents to easily share and collaborate with colleagues whether they're at home or in the office.
- Large intuitive 10.9cm touchscreen with 56 configurable shortcuts
- Personalised multi-user experience
- Secure workgroup sharing
- Advanced image processing and batch scanning
- Features Auto Start scan, ultrasonic multifeed sensor, Separation Switch, Scan Preview, CIS Cleaning Alarm
- Includes Brother ScanEssentials software
- Driver compatibility with TWAIN (WIN and macOS), WIA, ISIS, Linux SANE
Specifications
General
Function | Scan |
Control Panel | Touchscreen |
Display | Yes |
Backup Clock | Up to 24 hours |
Form Factor | Desktop |
Scanner type | Dual CIS (Contact Image Sensor), LED Array Light Source |
Scanning
2-Sided scan | Yes |
One Sided Scan Speed A4 Mono (3) | 40 (pages per minute) |
One Sided Scan Speed A4 Colour (3) | 40 (pages per minute) |
Two Sided Scan Speed A4 Mono (3) | 80 (images per minute) |
Two Sided Scan Speed A4 Colour (3) | 80 (images per minute) |
Resolution | Optical (600 x 600dpi), Interpolated |
Colour Depth | Output (24 bit Colour Processing), Input, 48 bit Colour Processing |
Form Factor | Desktop |
Wireless Scanning | Yes |
Mobile Scan | Yes |
Media specifications
Automatic Document Feeder | 80 |
Media Sizes | Direct Paper Path (Width 50.8 - 215.9mm), Height 50.8 - 355.6mm, Long Paper 5000mm |
Media Types | Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Business Card, Plastic Card |
Paper Weight | 40 - 200gsm |
Paper Thickness | 0.08 ~ 0.28mm |
Plastic Card Size | Length (ISO) (85.60mm), Width (ISO) (53.98mm) |
Plastic Card Thickness | Up to 1.32mm |
Scanner functions
File Format Support | JPEG, PDF, TIFF |
Standard Functions | Scan to (PC, Image, FTP, File, Network, Network Folder, SFTP, USB, SharePoint, Email Server), HTTP(S), Brother Web Connect, Brother Apps |
Scan Profiles | 25 Preset network |
Direct Scan | Yes |
Feed Control | Auto Start Scan, Continuous Scan, Document Separation, Resume Scan, Scan Preview, Separation Switch, Ultra Sonic Multi Feed Sensor |
Drivers
Scan Drivers | Linux ( SANE), Macintosh ( AirPrint Scanning, TWAIN, 10.14.x, macOS), Windows (Windows 11, Windows 10, TWAIN, WIA, Windows 8.1, Windows Server 2019, 2016, 2012R2, 2012 & 2008R2, ISIS), Visit support,brother,com for the full list of supported OS and to download the latest drivers and software, |
Fleet Management Tools
Fleet Management Tools | LAN/WAN Management Software (BRAdmin Light, BRAdmin Professional), Embedded Web Server |
Software supplied - Windows | Windows Software (Brother iPrint&Scan, Tungsten PaperPort, Kofax Power PDF Standard v3, Remote Setup, NewSoft Presto! Bizcard 6, Brother ScanEssentials), Macintosh Software (Brother iPrint&Scan Desktop, Remote Setup, NewSoft Presto! Bizcard 7), Utilities, Easy Setup |
Network
Wireless network security | SSL/TLS (IPPS, HTTPS), WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES) *Wi-Fi Direct supports WPA2-PSK (AES) only, SMTP-AUTH |
Wired Network Security | SSL/TLS (IPPS, HTTPS), 802,1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), SMTP-AUTH, SNMP v3 |
Supplies And Accessories
Optional accessories | Roller Kit (Roller Kit PRK-A3001 ADS-4100, ADS-4300N, ADS-4500W, ADS-4700W), A3 Carrier Sheet |
Carton Contents
Carton Contents | Device, Power supply cord, Quick setup guide, Product safety guide, Warranty, Detachable ADF, AC adapter, USB cable |
Dimensions And Weights
Dimensions With Carton | 319mm (W) x 243mm (D) x 320mm (H) |
Dimensions Without Carton | 299.5mm (W) x 215.9mm (D) x 190.5mm (H) |
Operating Environment
Power Requirement | AC (100-240V AC 50/60Hz), DC (24V, 1.9A) |
Sound Power | Scanning (<59dB) |
Operating | Humidity % (20 - 80%), Degrees Celsius (5°C - 35°C), Degrees Fahrenheit (41°F - 95°F) |
Storage | Humidity % (10 - 90%), Degrees Сelsius (-20°C - 60°C), Degrees Fahrenheit ( -4°F - 140°F) |
Wake Up Time | USB connected, approx 1 second from sleep mode |
Certification
WiFi Certified | Wi-Fi Direct, Wi-Fi Protected Setup™, WPA3™ Personal, WPA3™ Enterprise |
Address Book
Address Book | Speed Dials, LDAP, Group Send |
Connectivity
Local interface | USB 2.0 Host (Rear), SuperSpeed USB 3.0 |
Wireless network interface | 2.4GHz: IEEE 802.11b/g/n |
Wired Interface | 10BaseT/100BaseTX |
Wireless Setup Support | Yes |
WiFi Direct | Yes |
WiFiDirectTM | Yes |
Wired Network Security | SSL/TLS (IPPS, HTTPS), 802,1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), SMTP-AUTH, SNMP v3 |
Wireless Network Security | SSL/TLS (IPPS, HTTPS), WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES) *Wi-Fi Direct supports WPA2-PSK (AES) only, SMTP-AUTH |
Security Features
Security Features | E-mail Notifications, E-mail Reports, Firmware Updates, Secure Function Lock 3.0, Setting Lock, Port-based Network Access Control (IEEE 802,1x), Kensington Lock, On-Premise Active Directory/LDAP Authentication, Secure Key Management |
IPv4 | DHCP, APIPA (AutoIP), WINS/NetBIOS name resolution, DNSResolver, LLMNR responder, SNMPv1/v2c/v3, Web Services (Scan), SNTPClient, LDAP, mDNS, HTTP/HTTPS Server, HTTP Server |
IPv6 | RA, DNS Resolver, mDNS, LLMNR responder, HTTP/HTTPS Server, ICMPv6, SNTP Client, Web Services(Scan), HTTP Server |
IP Filter | Yes |
Mobile Connectivity
Mobile and Web Connectivity | Brother Mobile Connect (Android, iPad / iPhone), Brother Apps, Web Connect, Scan to Workflow |
Energy Consumption
Power Saving Modes | Sleep, Power Down, Auto power on after power outage |
Caveats
- [3] Scan Speeds based on ISO/IEC 17991
Support & Drivers
Resources
Software Security Updates Guarantee
Brother devices conform to The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023 and receive guaranteed software security updates until at least five years after the device is last in production.
After the initial support period, Brother shall use all reasonable endeavours to provide software updates for as long as reasonably practicable.
If you already own a Brother device, visit support.brother.com for information specific to your device.
Fast and reliable

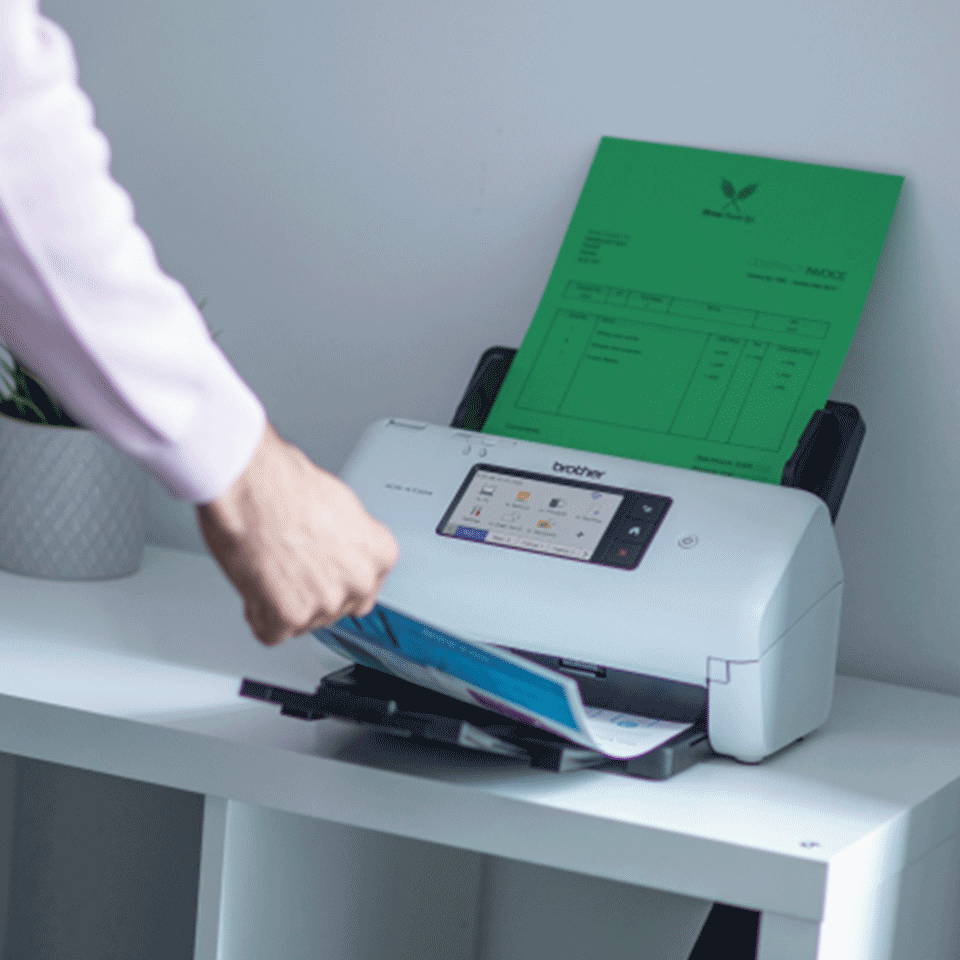

With an in-built ultrasonic multifeed to eliminate misfeeds, the ADS-4700W has a large 80 sheet ADF capacity and rapidly scans up to 40 pages per minute. The separation switch enables very thick and thin documents, plastic cards and crumpled paper to smoothly feed through with ease.
Simple and intuitive
Set up a dedicated user interface with one-touch scanning and the ability to add up to 56 shortcuts to frequently used destinations. You can also use an optional external cardreader to make the scanning process even easier. Just tap the card and add your documents into the ADF to automatically and securely capture the information on the page.
Advanced connectivity
With USB3.0, USB host, network and wireless connectivity, you can securely scan documents and share with colleagues.
Industry recognised software
Increase post-scanning productivity with industry recognised software including Kofax and Newsoft, available as standard with device.
Advanced image capture and processing
Effortless and impressive image capture and processing - from easily referencing and locating scanned pages with the digital imprinter, to optimising image quality through the automatic vertical streaks and moiré reduction tools.
The document separation functionality also automatically detects and removes any scanned blank pages, thus reducing file sizes and document preparation time.
Brother ScanEssentials
Our ScanEssentials software provides you with additional features which you can tailor to your business. For added security, you can set up passwords and protect your workflows, with the option to save your documents in a variety of formats.
The metadata function can also read barcodes or specific strings of text to easily facilitate the separation and file naming of documents.
