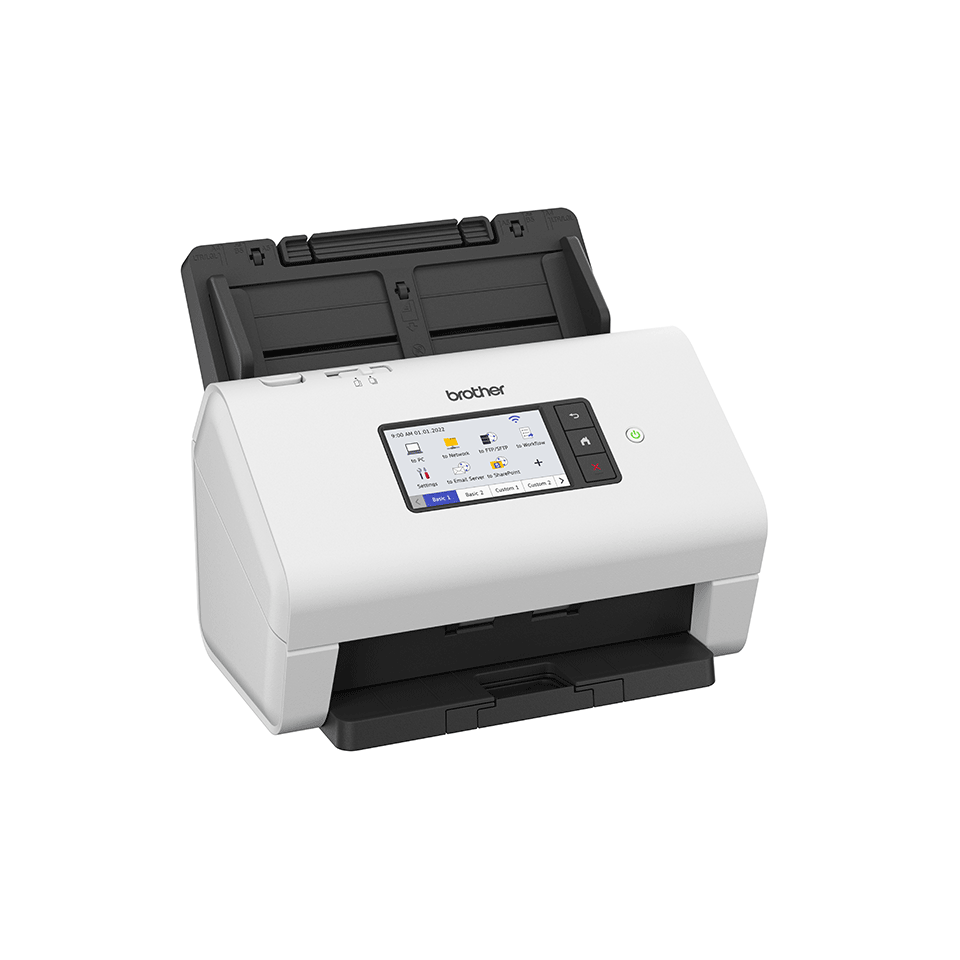

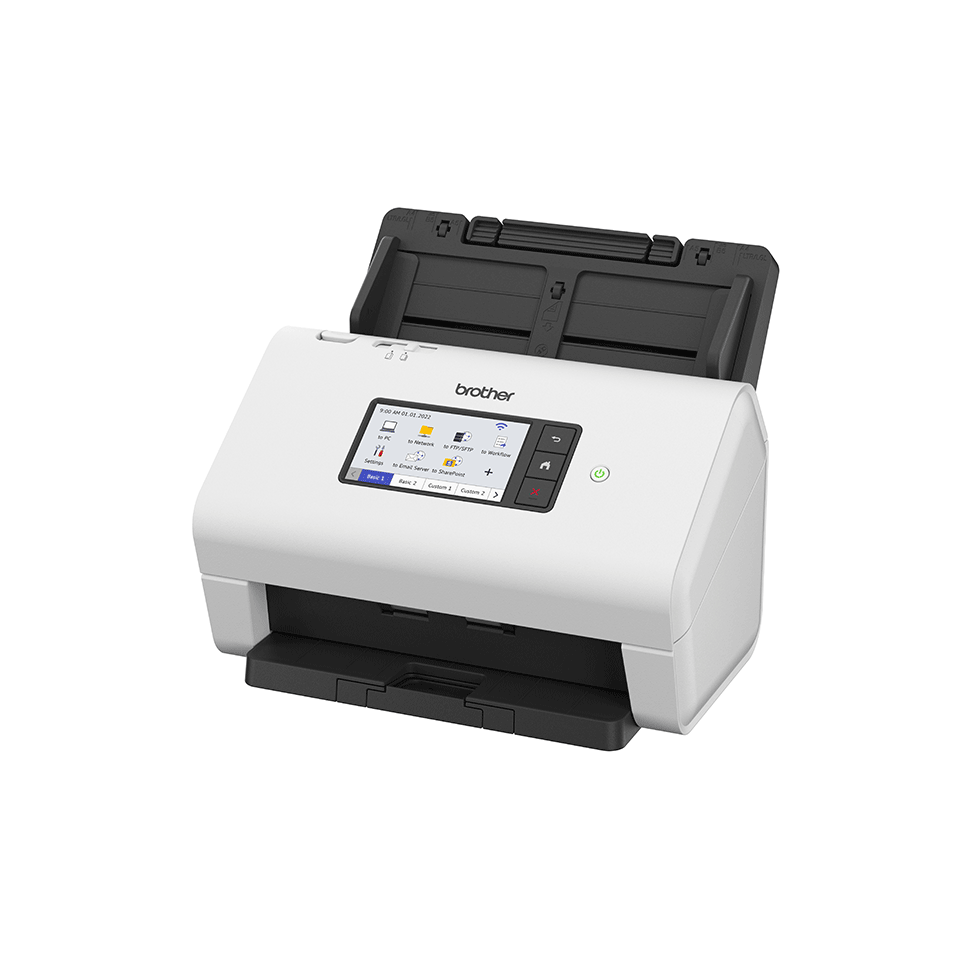

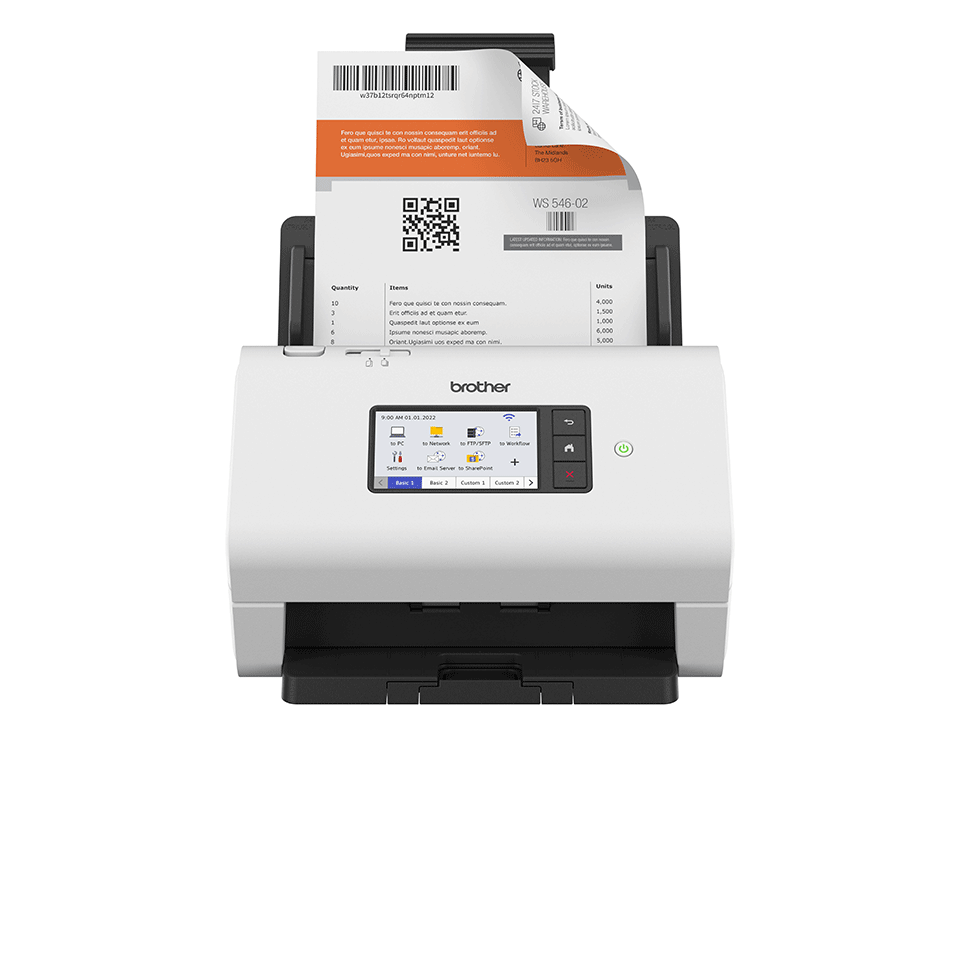

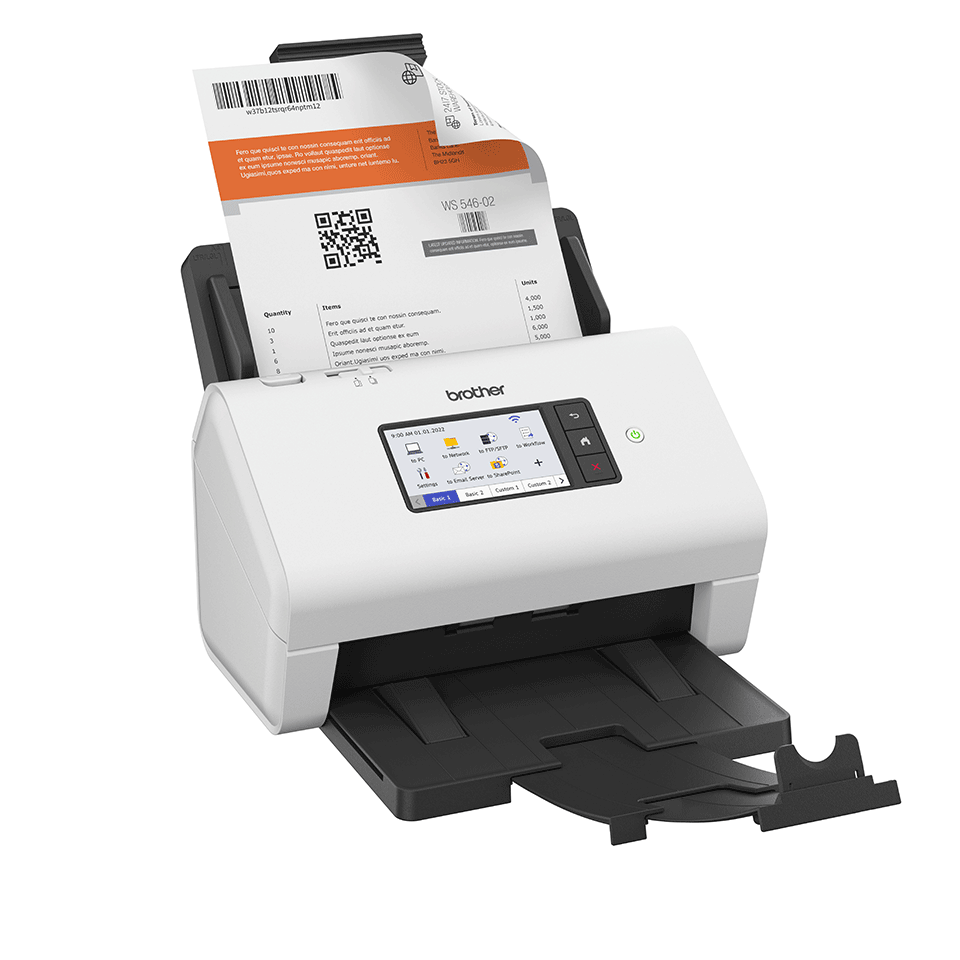

ADS-4900W Professional desktop document scanner
With high-performance wired and wireless connectivity and dedicated user touchscreen. Ideal for high-volume, secure batch scanning for collaborative and complex workflows.Inc. VAT
Ex. VAT
Inc. VAT
Ex. VAT
Product Details
- Scan up to 60 pages per minute
- 2-sided scan up to 60 pages per minute
- 100 sheet Automatic Document Feeder (ADF)
- 5GHz Wi-Fi and wired connectivity
- SuperSpeed USB3.0
- Scan directly to USB host
Product Overview
For uninterrupted high-volume, batch scanning. With the simplicity of one-touch scanning, securely capture, send and receive business documents with ease, whether they're at home or in the office.
- Large intuitive 10.9cm touchscreen with 56 configurable shortcuts
- Personalised multi-user experience
- Secure workgroup sharing
- Advanced image processing and batch scanning
- Features Auto Start Scan, Ultrasonic Multifeed Sensor, Separation Switch, Scan Preview, CIS Cleaning Alarm
- Includes Brother ScanEssentials software
- Driver compatibility with TWAIN (WIN and macOS), WIA, ISIS, Linux SANE
Related Products
-
This product is available from our authorised retailers
-
Separation Roller x 1, Pick-up Roller x 2, Brake Roller x 1£37.20Inc. VAT£31.00Ex. VATThis product is available from our authorised retailers
-
Replacement rollers for optimal scanner performance£51.30Inc. VAT£42.75Ex. VATThis product is available from our authorised retailers
Specifications
General
| Function | Scan |
| Control Panel | Touchscreen |
| Display | Yes |
| Backup Clock | Up to 24 hours |
| Form Factor | Desktop |
| Scanner type | Dual CIS (Contact Image Sensor), LED Array Light Source |
Scanning
| 2-Sided scan | Yes |
| One Sided Scan Speed A4 Mono | 60 (pages per minute) |
| One Sided Scan Speed A4 Colour | 60 (pages per minute) |
| Two Sided Scan Speed A4 Mono | 120 (images per minute) |
| Two Sided Scan Speed A4 Colour | 120 (images per minute) |
| Resolution | Optical (600 x 600dpi), Interpolated |
| Colour Depth | 24 bit Colour Processing, Output, Input, 48 bit Colour Processing |
| Form Factor | Desktop |
| Wireless Scanning | Yes |
| Mobile Scan | Yes |
Media specifications
| Automatic Document Feeder | 100 |
| Media Sizes | Direct Paper Path (Width 50.8 - 215.9mm), Long Paper 5000mm, Height 50.8 - 355.6mm |
| Media Types | Plastic Card, Plain Paper, Thicker Paper, Thin Paper, Recycled Paper, Business Card, Thick Paper |
| Paper Weight | 25 - 413gsm |
| Paper Thickness | 0.08 ~ 0.28mm |
| Plastic Card Size | Length (ISO) (85.60mm), Width (ISO) (53.98mm) |
| Plastic Card Thickness | Up to 1.32mm |
Scanner functions
| File Format Support | PDF, TIFF, JPEG |
| Standard Functions | Scan to (USB, Email Server, PC, Network Folder, Network, SharePoint, SFTP, FTP, File, Image), Brother Apps, Brother Web Connect, HTTP(S) |
| Scan Profiles | 25 Preset network |
| Feed Control | Auto Start Scan, Ultra Sonic Multi Feed Sensor, Resume Scan, Scan Preview, Document Separation, Continuous Scan, Separation Switch |
Drivers
| Scan Drivers | Linux ( SANE), Macintosh ( AirPrint Scanning, TWAIN, 10.14.x, macOS), Windows (Windows 11, Windows 10, TWAIN, WIA, Windows 8.1, Windows Server 2019, 2016, 2012R2, 2012 & 2008R2, ISIS), Visit support,brother,com for the full list of supported OS and to download the latest drivers and software, |
Fleet Management Tools
| Fleet Management Tools | LAN/WAN Management Software (BRAdmin Professional, BRAdmin Light), Embedded Web Server |
| Software supplied - Windows | Windows Software (Brother iPrint&Scan, Kofax PaperPort, Kofax Power PDF Standard v3, Remote Setup, NewSoft Presto! Bizcard 6, Brother ScanEssentials), Macintosh Software (Brother iPrint&Scan Desktop, Remote Setup, NewSoft Presto! Bizcard 7), Utilities, Easy Setup |
Network
| Wireless network security | SSL/TLS (IPPS, HTTPS), WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES) *Wi-Fi Direct supports WPA2-PSK (AES) only, SMTP-AUTH |
| Wired Network Security | SSL/TLS (IPPS, HTTPS, SMTP), 802,1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), SMTP-AUTH, SNMP v3 |
Supplies And Accessories
| Optional accessories | Roller Kit (Roller Kit PRK-A4001 ADS-4900W), A3 Carrier Sheet |
Carton Contents
| Carton Contents | Detachable ADF, Power supply cord, AC adapter, USB cable, Quick setup guide, Product safety guide, Warranty, Device |
Dimensions And Weights
| Dimensions With Carton | 393mm (W) x 288mm (D) x 334mm (H) |
| Dimensions Without Carton | 300mm (W) x 247mm (D) x 236mm (H) |
Operating Environment
| Power Requirement | AC (100-240V AC 50/60Hz), DC (24V, 1.9A) |
| Sound Power | Scanning (<62.0dB) |
| Operating | Humidity % (20 - 80%), Degrees Celsius (5°C - 35°C), Degrees Fahrenheit (41°F - 95°F) |
| Storage | Humidity % (10 - 90%), Degrees Сelsius (-20°C - 60°C), Degrees Fahrenheit ( -4°F - 140°F) |
| Wake Up Time | USB connected, approx 1 second from sleep mode |
Certification
| WiFi Certified | Wi-Fi Protected Setup™, WPA3™ Personal, WPA3™ Enterprise, Wi-Fi Direct |
Address Book
| Address Book | Speed Dials, LDAP, Group Send |
Connectivity
| Local interface | USB 2.0 Host (Rear), SuperSpeed USB 3.0 |
| Wireless network interface | 2.4GHz: IEEE 802.11b/g/n, 5GHz: IEEE 802,11a/n |
| Wired Interface | 10BaseT/100BaseTX |
| Wireless Setup Support | Yes |
| WiFi Direct | Yes |
| WiFiDirectTM | Yes |
| Wired Network Security | SSL/TLS (IPPS, HTTPS, SMTP), 802,1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), SMTP-AUTH, SNMP v3 |
| Wireless Network Security | SSL/TLS (IPPS, HTTPS), WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES) *Wi-Fi Direct supports WPA2-PSK (AES) only, SMTP-AUTH |
Security Features
| Security Features | Kensington Lock, Firmware Updates, Port-based Network Access Control (IEEE 802,1x), E-mail Notifications, E-mail Reports, Secure Function Lock 3.0, Setting Lock, Secure Key Management, On-Premise Active Directory/LDAP Authentication |
| IPv4 | DHCP, APIPA (AutoIP), WINS/NetBIOS name resolution, DNSResolver, LLMNR responder, SNMPv1/v2c/v3, Web Services (Scan), SNTPClient, LDAP, mDNS, HTTP/HTTPS Server, HTTP Server |
| IPv6 | RA, DNS Resolver, mDNS, LLMNR responder, HTTP/HTTPS Server, ICMPv6, SNTP Client, Web Services(Scan), HTTP Server |
| IP Filter | Yes |
Mobile Connectivity
| Mobile and Web Connectivity | Brother Mobile Connect (Android, iPad / iPhone), Brother Apps, Web Connect, Scan to Workflow |
Energy Consumption
| Power Saving Modes | Sleep, Power Down, Auto power on after power outage |
Support & Drivers
Software Security Updates Guarantee
Brother devices conform to The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023 and receive guaranteed software security updates until at least five years after the device is last in production.
After the initial support period, Brother shall use all reasonable endeavours to provide software updates for as long as reasonably practicable.
If you already own a Brother device, visit support.brother.com for information specific to your device.
